Converter HDZero Analog Camera Adapter

Product detailed description

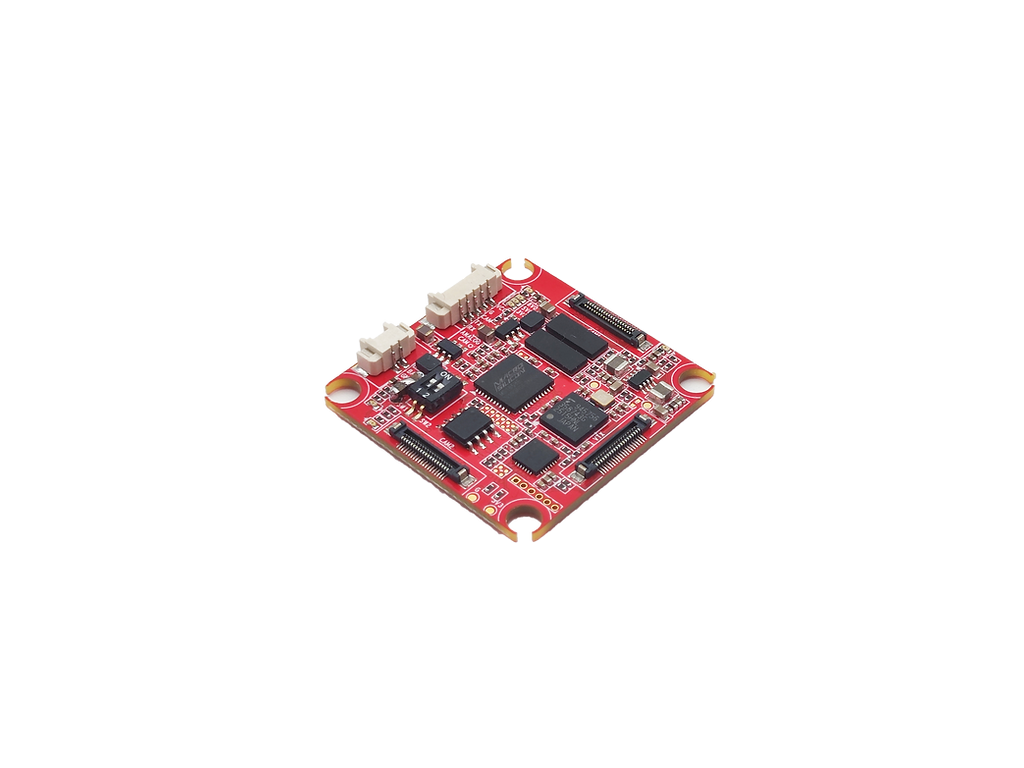

Converter HDZero Analog Camera Adapter

The Analog/HDZero Camera Adapter enables analog cameras to be used within an HDZero digital video system by converting standard CVBS NTSC analog signals into a digital MIPI format compatible with HDZero VTXs. Beyond signal conversion, it functions as a 3-to-1 camera switcher, allowing pilots to combine two digital MIPI cameras and one analog camera in a single mixed setup. Camera switching can be handled manually via dip switches or through software, with the simplest and most reliable method being direct flight controller integration through Betaflight's Cam1/Cam2/Cam3 switch modes.

Features:
— Converts analog CVBS NTSC camera signals to digital MIPI for HDZero VTXs

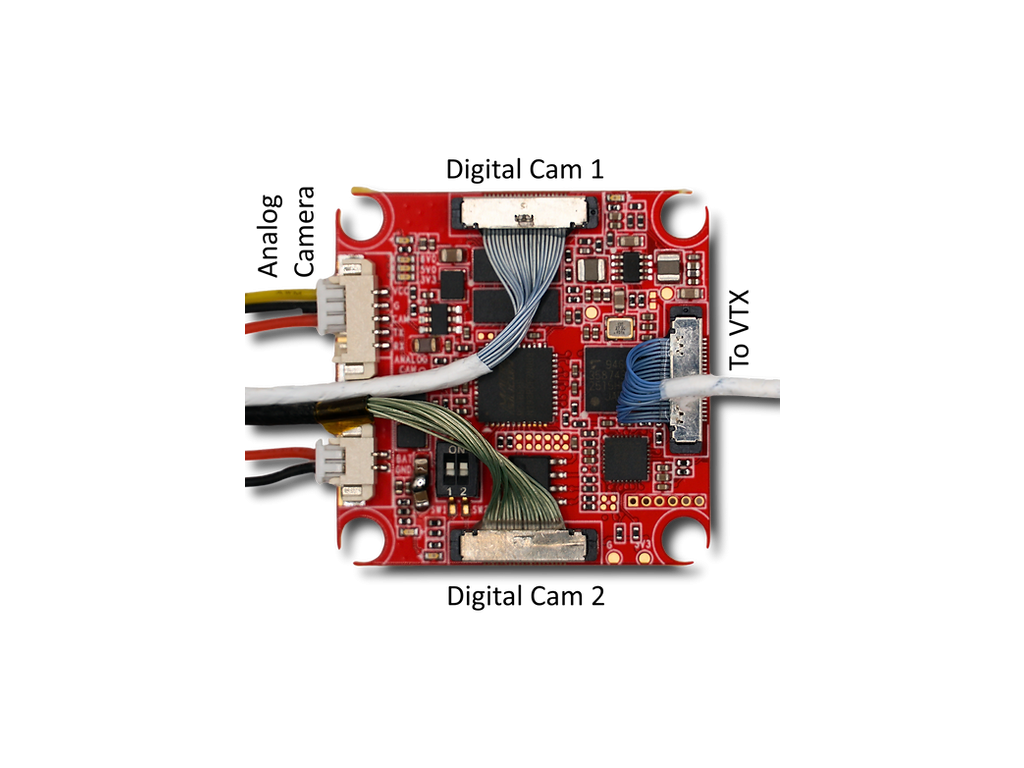

— Integrated 3-to-1 camera switcher for mixed analog/digital setups
— Supports two digital MIPI cameras and one analog camera simultaneously
— Seamless camera switching via firmware and flight controller integration
— Compatible with Betaflight Cam1/Cam2/Cam3 switch mode assignment
— Ideal for multi-camera and mixed analog/digital builds
— Compact 30x30 soft mounting for easy installation

Specifications:
Signal Conversion: Analog CVBS NTSC to Digital MIPI
Camera Switching: 3-to-1 (2x MIPI digital + 1x analog)

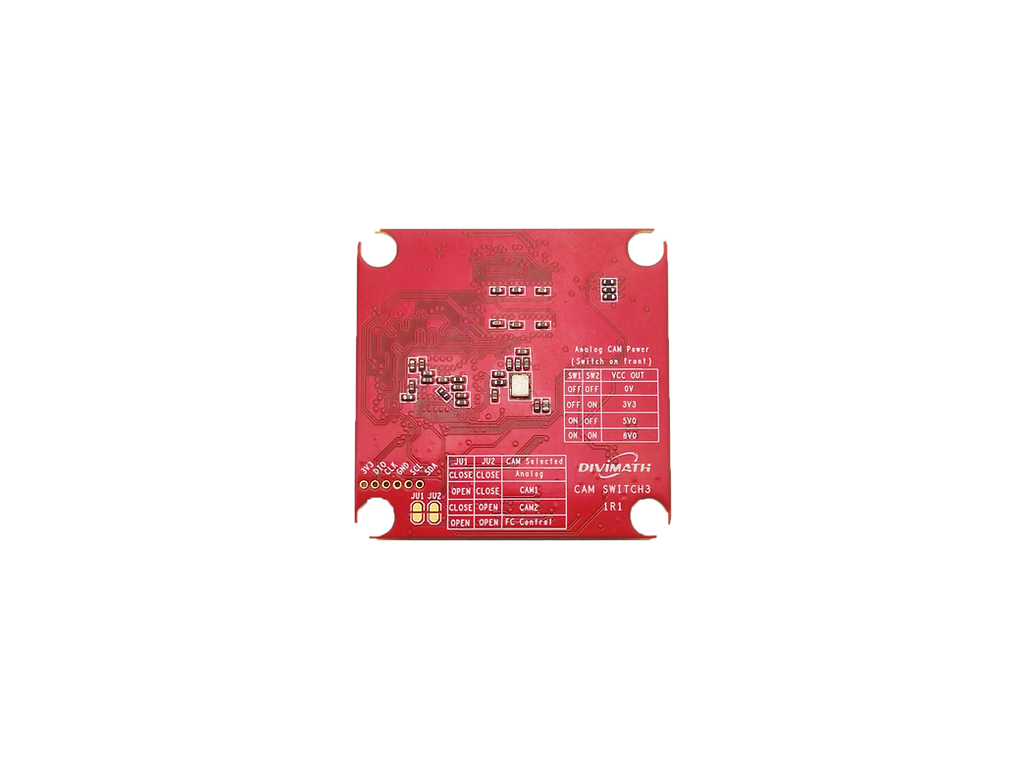

Switching Methods: Dip switches (manual) or software (Betaflight FC integration)
Required HDZero VTX Firmware: v1.7.1 or higher
Analog Camera Requirement: CVBS NTSC output
Mounting: 30x30mm soft mount

Package Includes:
1x Analog/HDZero Camera Adapter
