FC iFlight Borg Mini H7 (RX)

Product detailed description

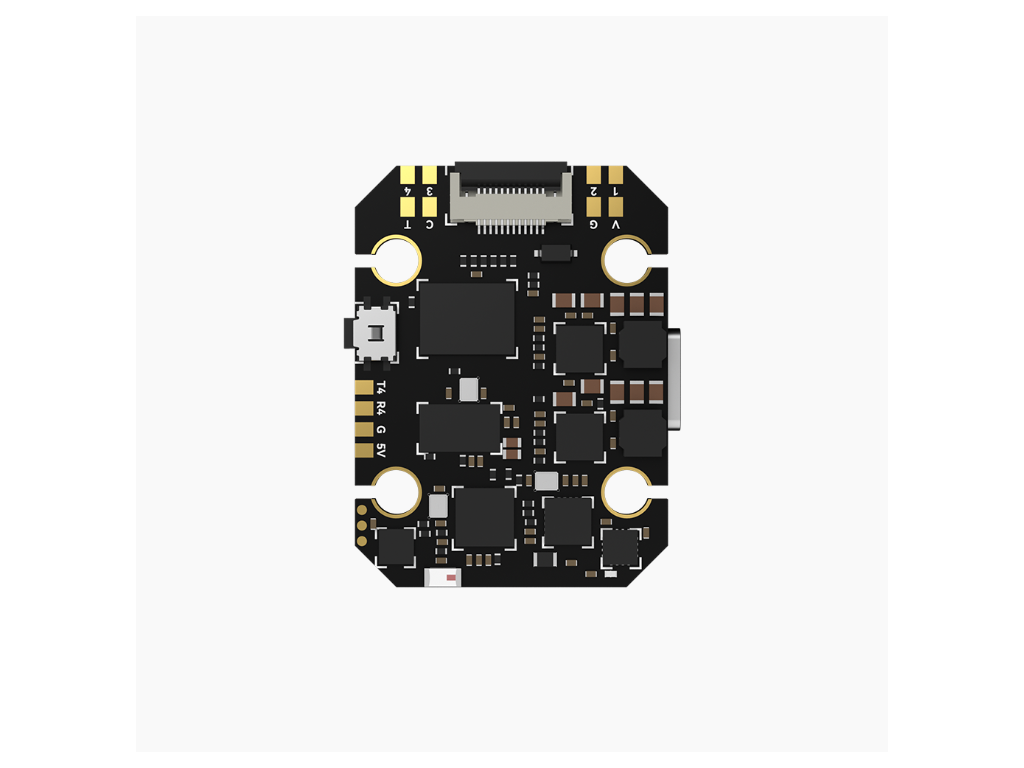

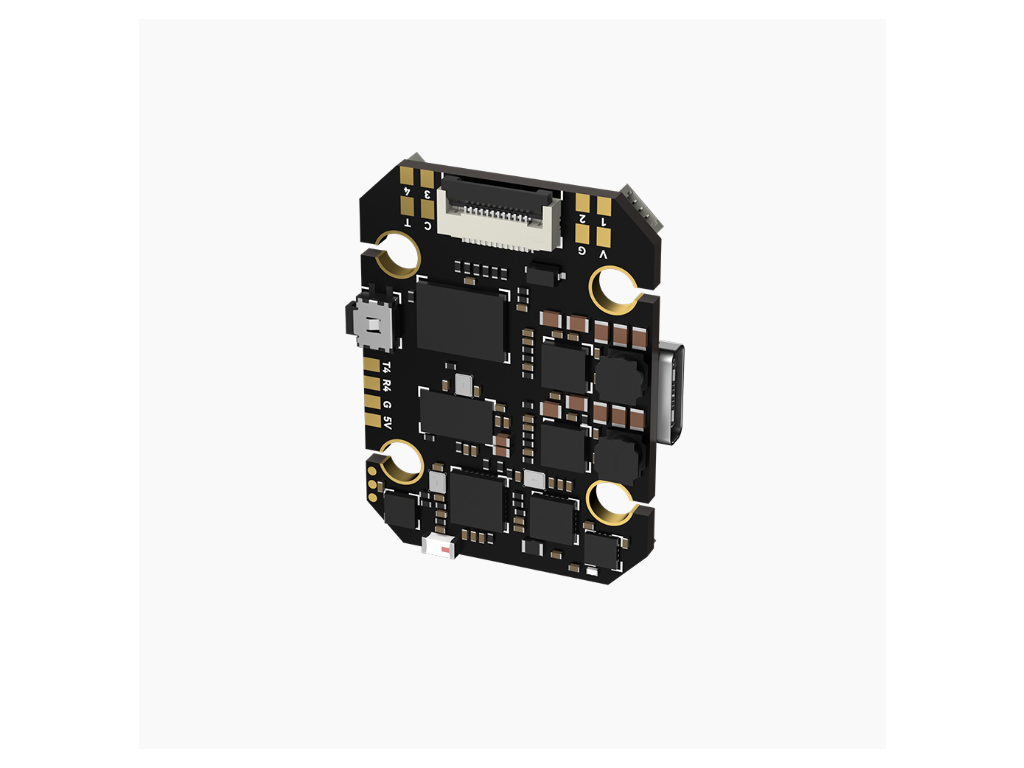

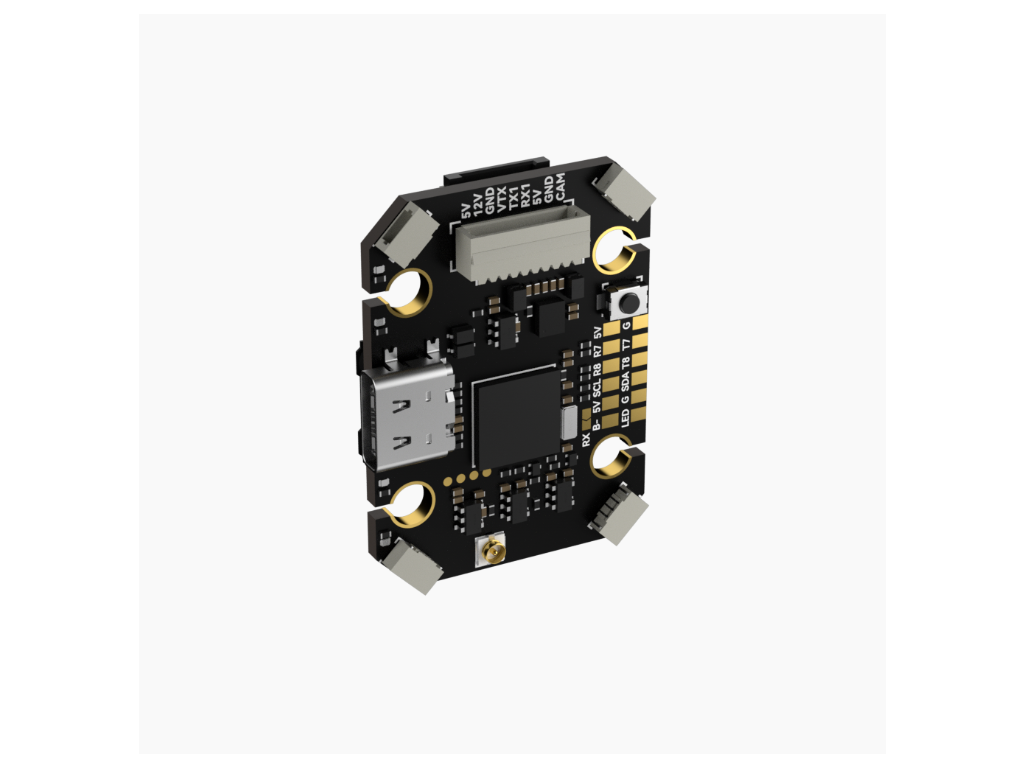

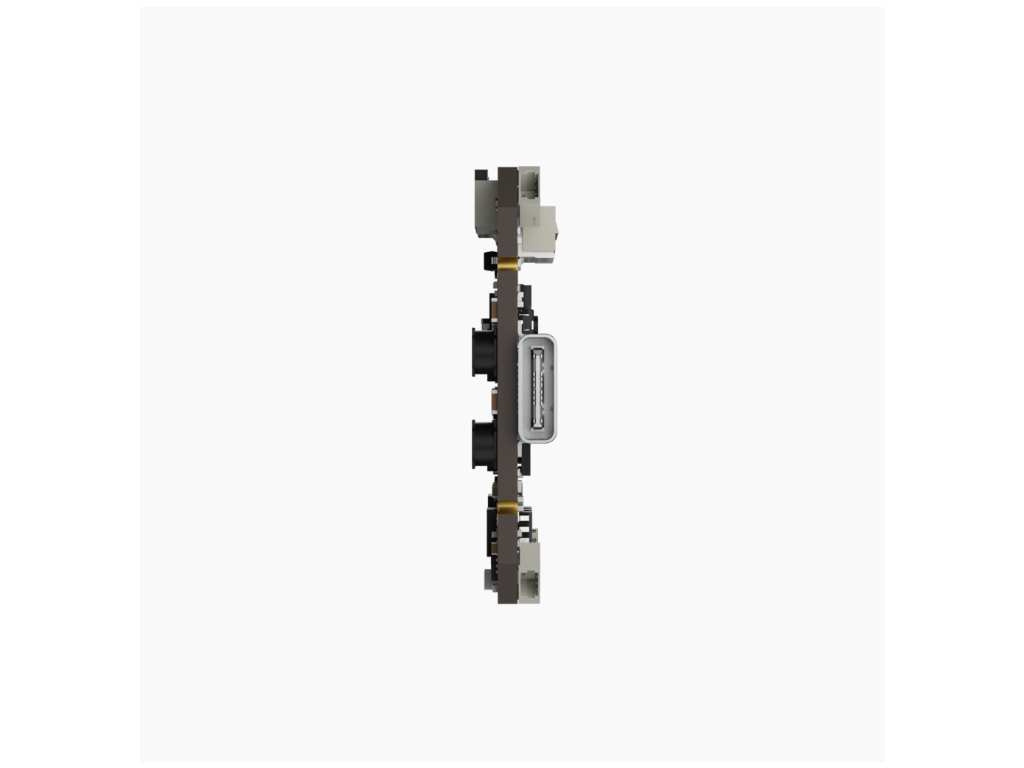

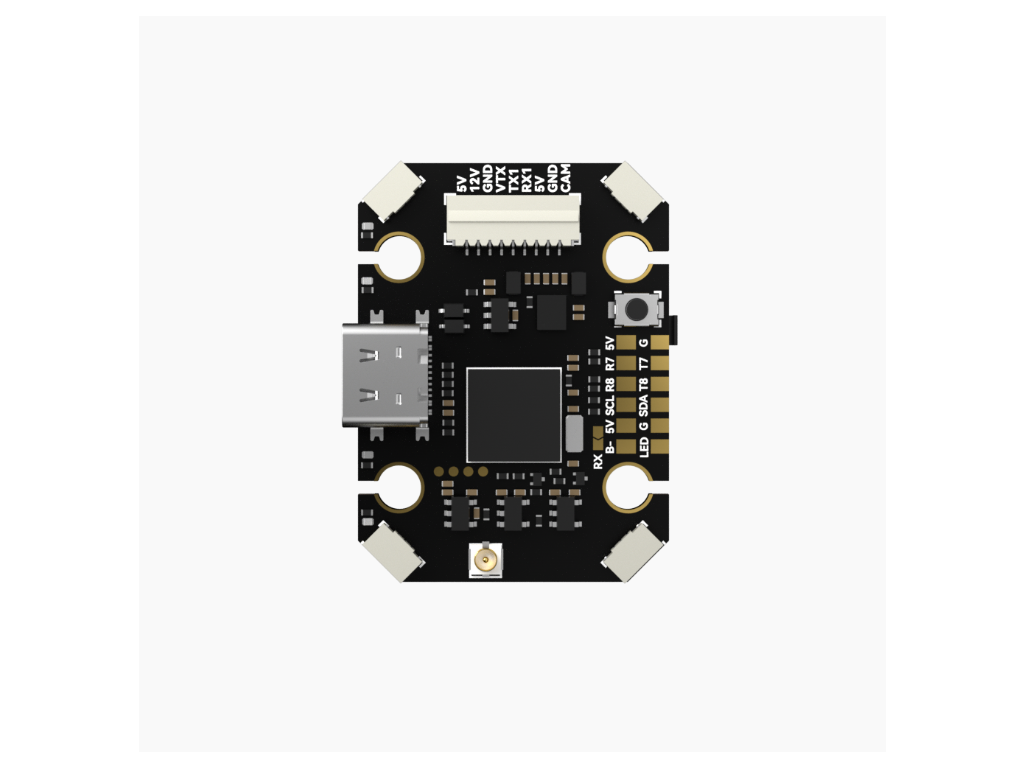

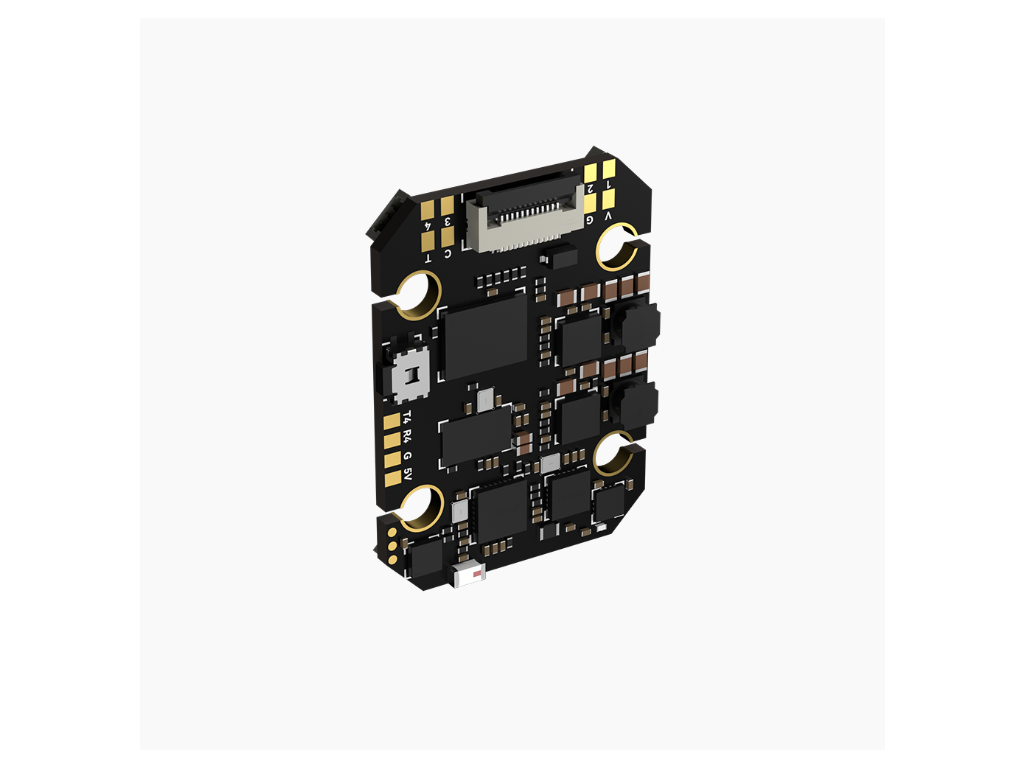

FC iFlight Borg Mini H7 (RX)

The iFlight Borg Mini H7 (RX) Flight Controller is a compact, high-performance FC engineered for FPV racing and demanding freestyle applications. Powered by the STM32H743 processor and featuring a built-in ELRS 2.4GHz receiver with an external antenna, it delivers ultra-fast processing, reliable radio communication, and stable flight performance while maintaining excellent compatibility with modern FPV systems.

Features:
- Built-in ELRS 2.4GHz receiver provides reliable, low-latency radio communication.
- Supports external receivers for greater installation flexibility.
- Compatible with a wide range of battery configurations for versatile racing setups.
- High-performance H7 processor delivers fast response and precise flight control.
- Integrated 12V BEC provides stable power for video transmitters and supports remote VTX power switching.
- FPC ribbon cable connection ensures secure and reliable communication with compatible ESCs.
- Built-in Blackbox memory enables detailed flight logging and tuning.
- Supports DJI MSP, SmartAudio, IRC Tramp, and HDZero VTX protocols.
- Multiple UART ports allow easy connection of GPS modules, ESC telemetry, and additional peripherals.
- Integrated LED controller and beeper output improve aircraft visibility and recovery.
- Four onboard LED strip outputs include short-circuit protection, preventing LED faults from affecting flight controller operation.
- Fully compatible with Betaflight firmware for advanced configuration and tuning.

Specifications:
Flight Controller
Input Voltage: 4–8S LiPo / LiHV
MCU: STM32H743VIH6
Gyroscope: ICM42688
OSD Chip: AT7456E (LGA)
Blackbox Flash: 32MB
UART Ports: 5
Motor Outputs: 4
I2C Interface: Supported
Supported VTX Protocols: DJI MSP, SmartAudio, IRC Tramp, HDZero
LED Controller: Yes
Beeper Pad: Yes
BEC Output: 5V 2.5A
BEC Output: 12V 2A (switchable VTX output)
Betaflight Firmware Target: IFLIGHT_BORG_Mini_H7

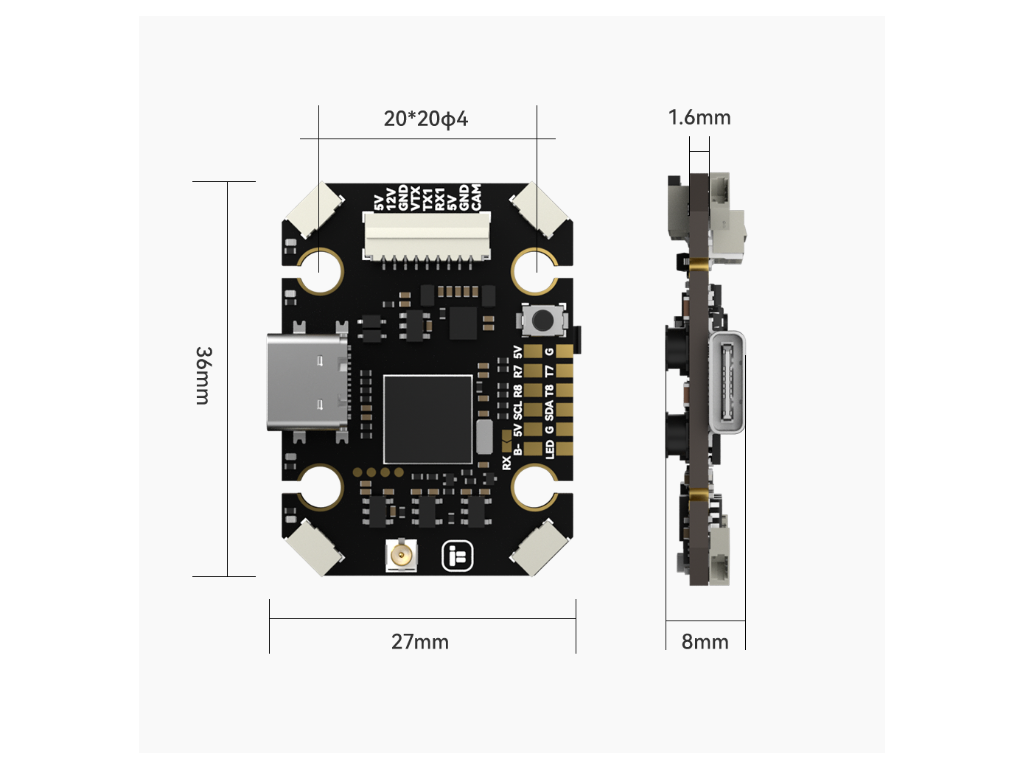

Mounting Pattern: 20x20 mm (Ø4 mm)
Dimensions: 36x27 mm (±1 mm)
Weight: 7.7 g (±1 g)

Integrated ELRS Receiver
MCU: ESP8285
RF Chip: SX1281
Receiver Frequency: 2.4GHz
Telemetry Power: 100mW (20dBm)
LNA: Yes
TCXO: Yes
Lua Script: iFlight 2400 RX
Firmware: iFlight2.4GHz_2400_RX

Package includes:
1x iFlight Borg Mini H7 Flight Controller with Integrated ELRS 2.4GHz Receiver
1x Cable Set
5x Silicone Grommets
