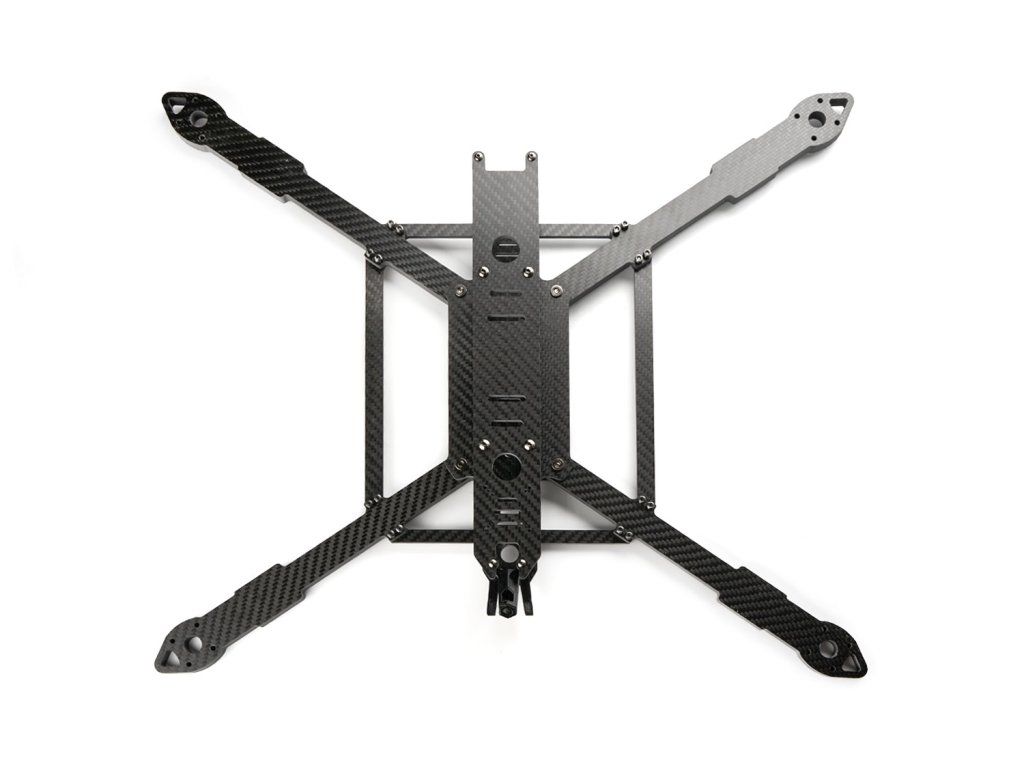

Frame Pilotix PT15 Lite

The Pilotix PT-15 Lite is a 15-inch FPV frame featuring a Quadcopter True X configuration constructed from Carbon T300 material. This frame offers a 610mm wheelbase and weighs 850 grams, designed for larger FPV builds requiring robust carbon fiber construction. The frame structure consists of three main plates: a top plate measuring 309 x 46 x 3.5mm, a middle plate at 310 x 94 x 3.6mm, and a bottom plate sized 155 x 94 x 3.5mm. The arms measure 308 x 32 x 9mm, providing substantial thickness for durability. The mounting distance between top and middle plates is 35mm, offering internal space for components. FC and ESC mounting follows the 30.5 x 30.5mm M3 pattern, while VTX mounting supports three configurations: 30.5 x 30.5mm M3, 25 x 25mm M2, and 20 x 20mm M2. Motor mounting utilizes the 22.5 x 22.5mm M3 pattern. The package includes frame parts, aluminium columns, screws, nuts, 3D prints, battery pad, and two battery straps. The product comes with a 2-year warranty.
