Motor Pilotix 4218-350KV
Code: 5986Product detailed description
The Pilotix 4218-350KV is an FPV motor featuring a 350 KV rating and a 12N14P configuration. This motor delivers a maximum power output of 3530 watts with a rated voltage of 50.4 volts.
The motor operates within a voltage range of 36 to 50.4 volts and supports a maximum current of 73 amperes. It features a stator size of 42mm diameter by 18mm length, equipped with 52SH Arc magnets. The internal resistance measures 43 milliohms, with a no-load current of 1.7 amperes. The shaft dimensions are 5mm diameter by 22mm length.
The motor has overall dimensions of 50.4mm diameter by 63.3mm height and weighs 320 grams. It includes 16 AWG silicone cable with a length of 500mm. The product is backed by a 2-year warranty.
Product details
| Model | 4218-350KV |
|---|---|
| SKU | 5986 |
Electrical specification
| Motor KV | 350 KV |
|---|---|
| Rated voltage | 50.4 V |
| Operating voltage range | 36 - 50.4 V |
| Maximum current | 73 A |
| Maximum power | 3530 W |
| No-load current | 1.7 A |
| Internal resistance | 43 mΩ |
Mechanical specifications
| Configuration | 12N14P |
|---|---|
| Stator / Magnets | 52SH Arc |
| Stator size | 42 x 18 mm |
| Shaft size | 5 x 22 mm |
| Motor dimensions | 50.4 x 63.3 mm |
| Silicone cable | 16 AWG |
| Silicone cable length | 500 mm |
| Weight | 320 g |
Common
| Warranty | 2 years |
|---|

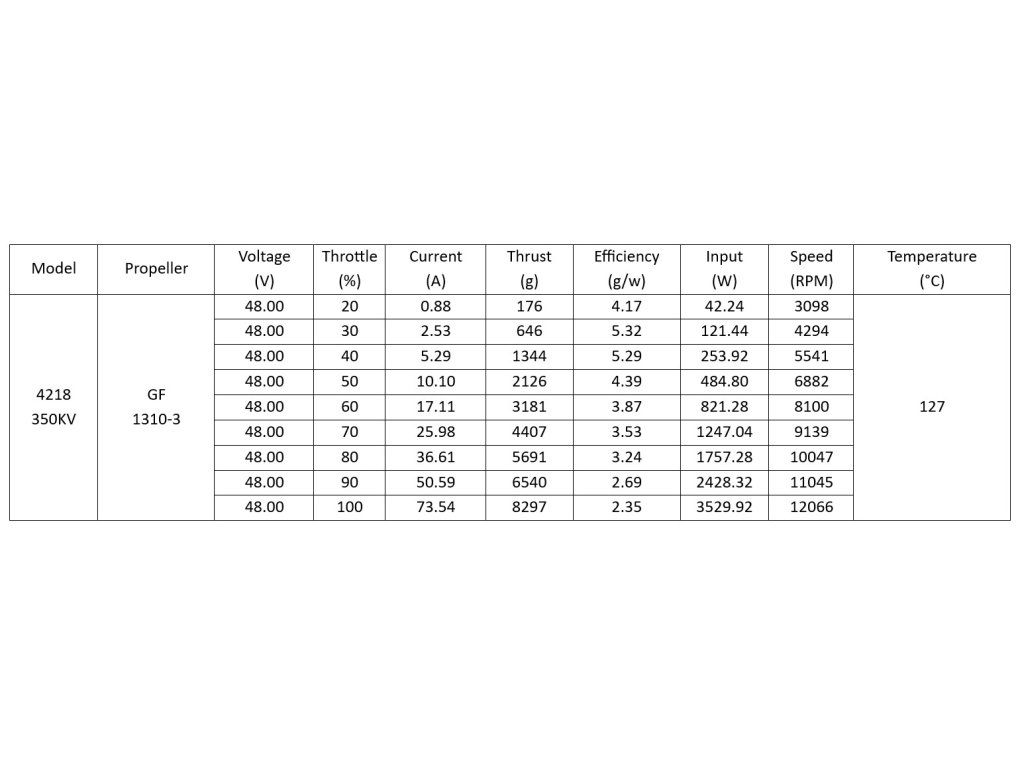

Motor performance data
