Motor Pilotix A3115 900KV
Code: 4250Product detailed description

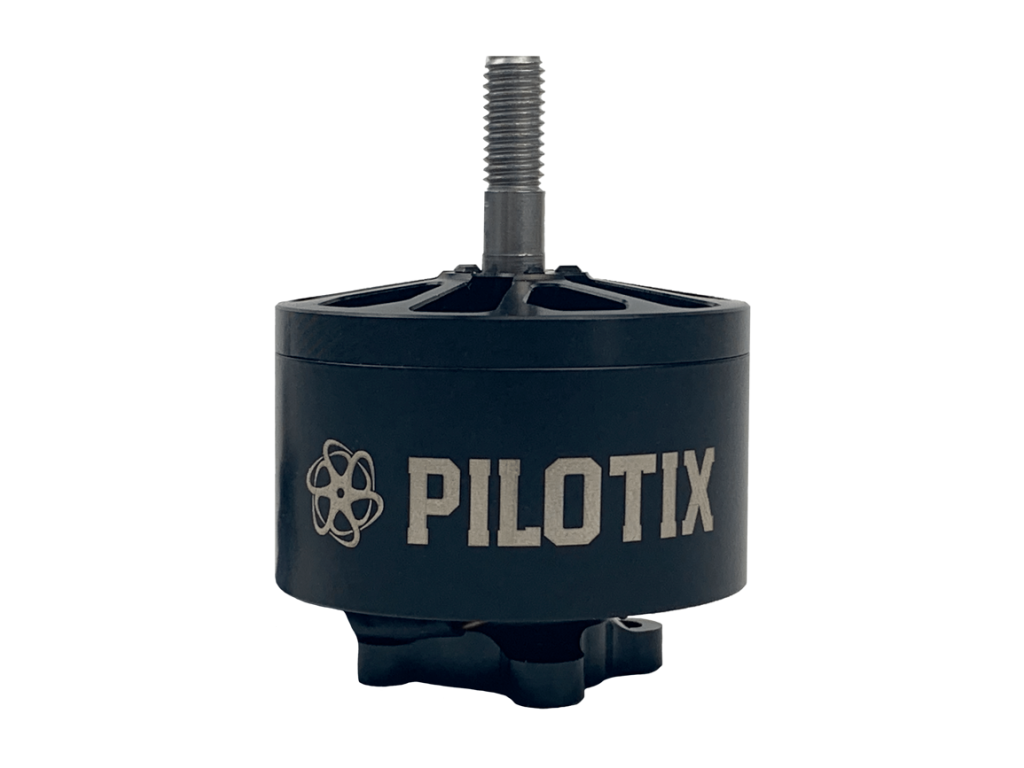

The Pilotix A3115 900KV is a brushless motor designed for FPV applications, featuring a 900 KV rating and a 12N14P configuration. This motor operates with a rated voltage of 22.2V and supports an operating voltage range from 11.1V to 25.2V.
The A3115 900KV delivers a maximum power output of 1592W with a maximum current draw of 63.7A. The stator measures 31mm in diameter with a 15mm length, while the overall motor dimensions are 36.8mm in diameter and 28.5mm in height. The internal resistance is rated at 46 milliohms, and the no-load current measures 1.28A at 12V.
The motor features a 5mm diameter shaft with 15mm length and includes 18 AWG silicone cables measuring 500mm in length. Mounting is accomplished via a 19 x 19 mm pattern using M3 hardware. The product is backed by a 2-year warranty.
Product details
| Model | A3115 900KV |
|---|---|
| SKU | 4250 |
Electrical specification
| Motor KV | 900 KV |
|---|---|
| Rated voltage | 22.2 V |
| Operating voltage range | 11.1 - 25.2 V |
| Maximum current | 63.7 A |
| Maximum power | 1592 W |
| No-load current | 1.28 A @ 12 V |
| Internal resistance | 46 mΩ |
Mechanical specifications
| Configuration | 12N14P |
|---|---|
| Stator size | 31 x 15 mm |
| Shaft size | 5 x 15 mm |
| Motor dimensions | 36.8 x 28.5 mm |
| Silicone cable | 18 AWG |
| Silicone cable length | 500 mm |
| Mounting | 19 x 19 mm (M3) |
Common
| Warranty | 2 years |
|---|

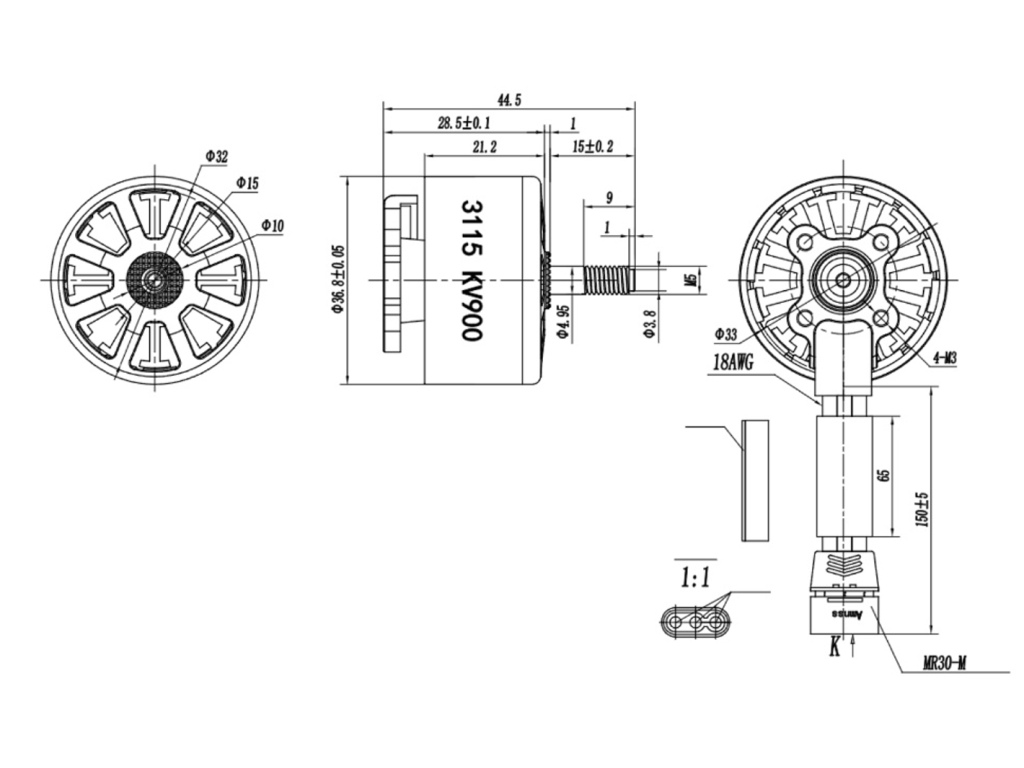

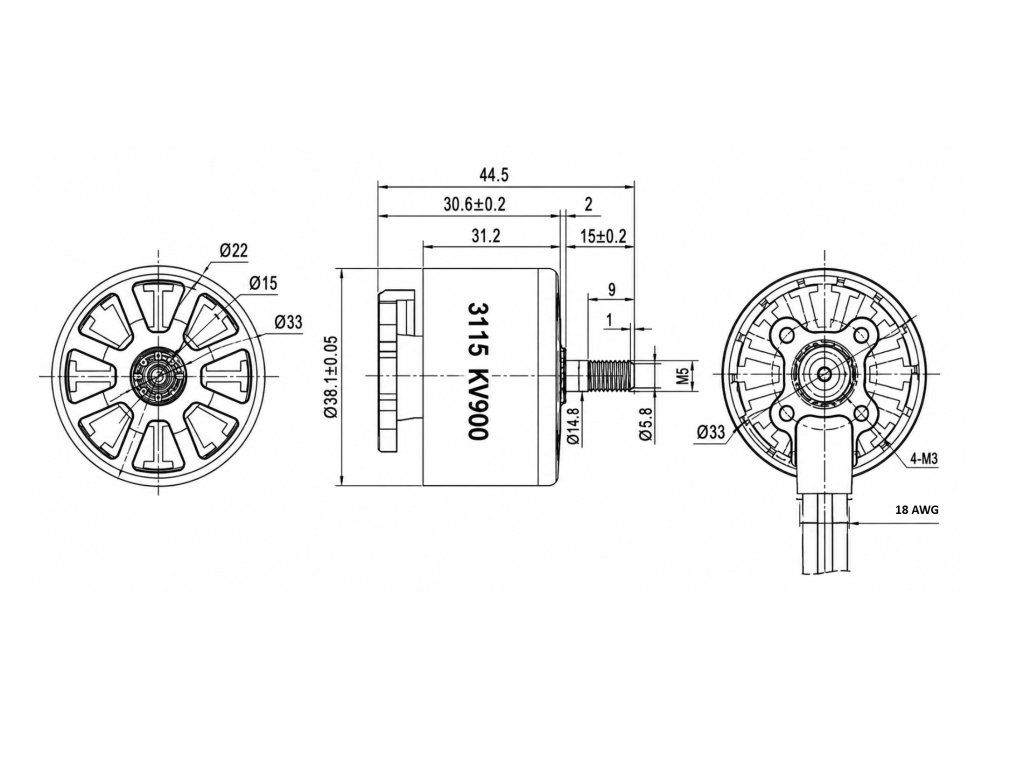

Mechanical specification
