Stack iFlight Borg F7 (Borg 60 ESC)

Product detailed description

Stack iFlight Borg F7 (Borg 60 ESC)

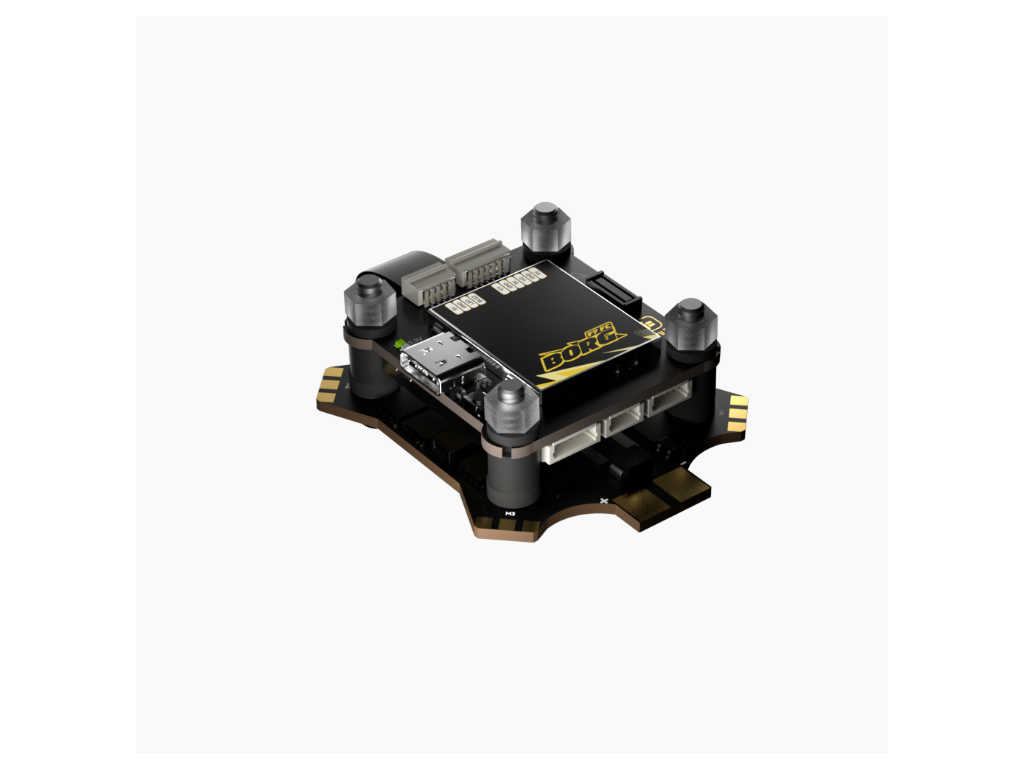

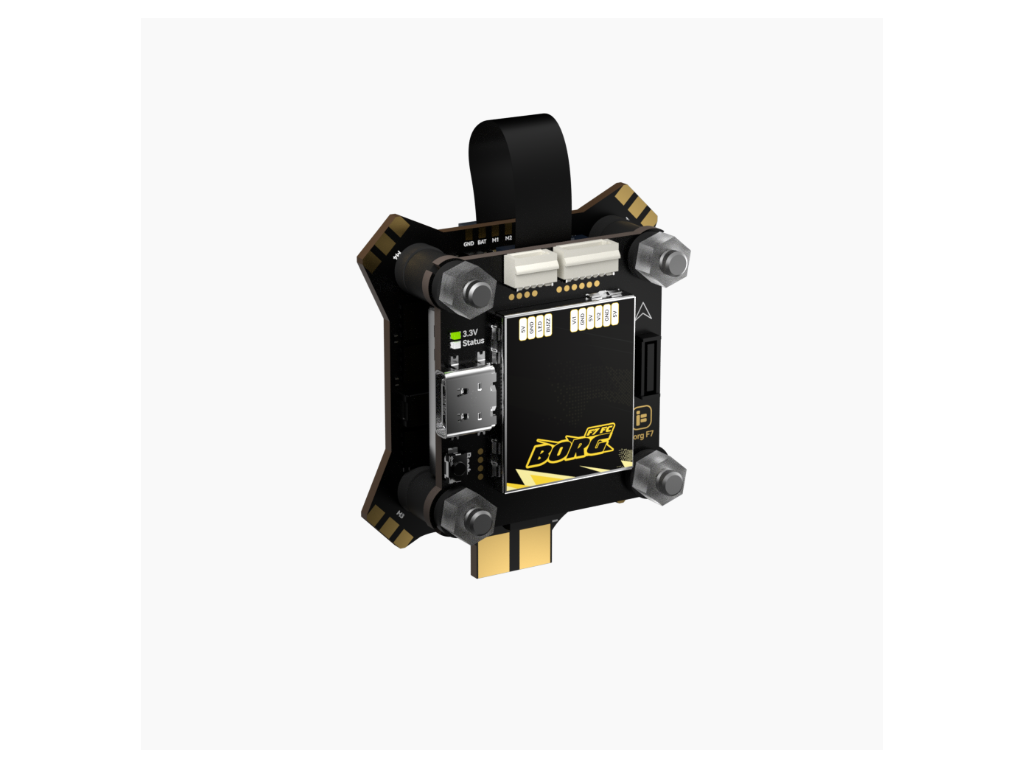

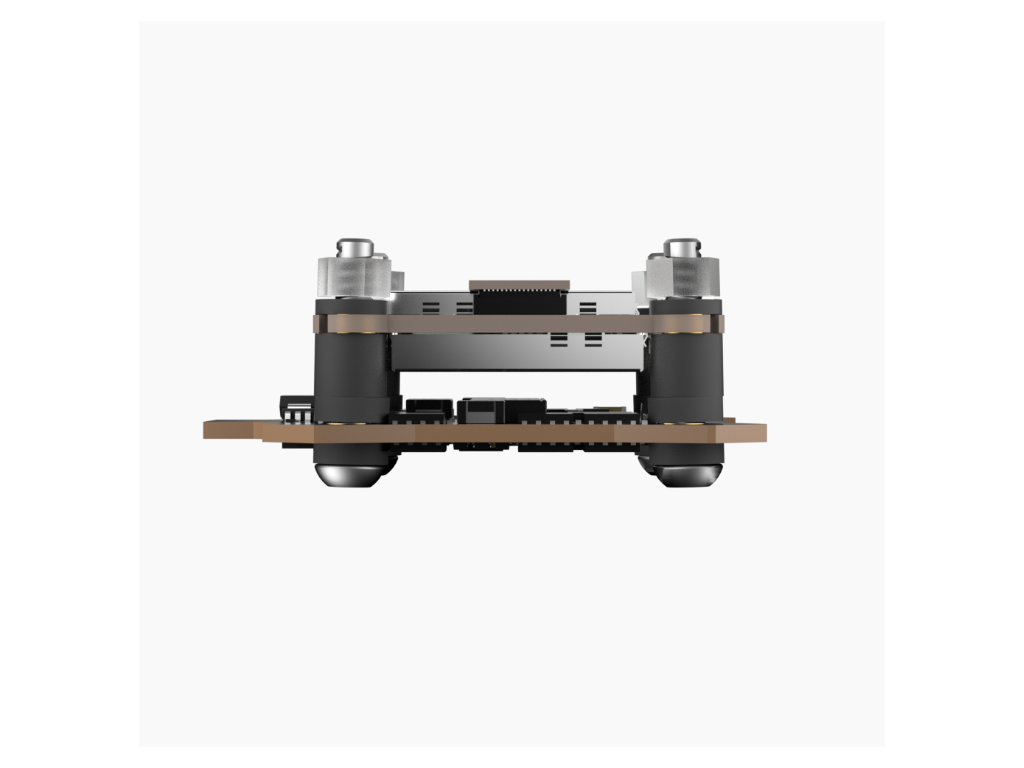

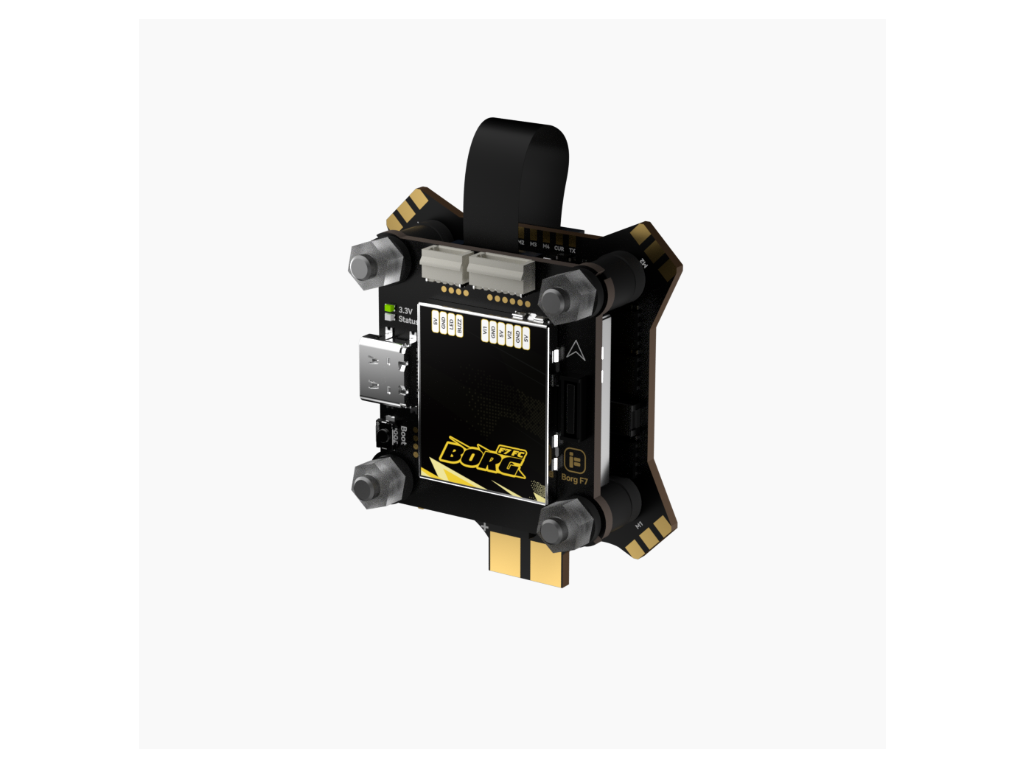

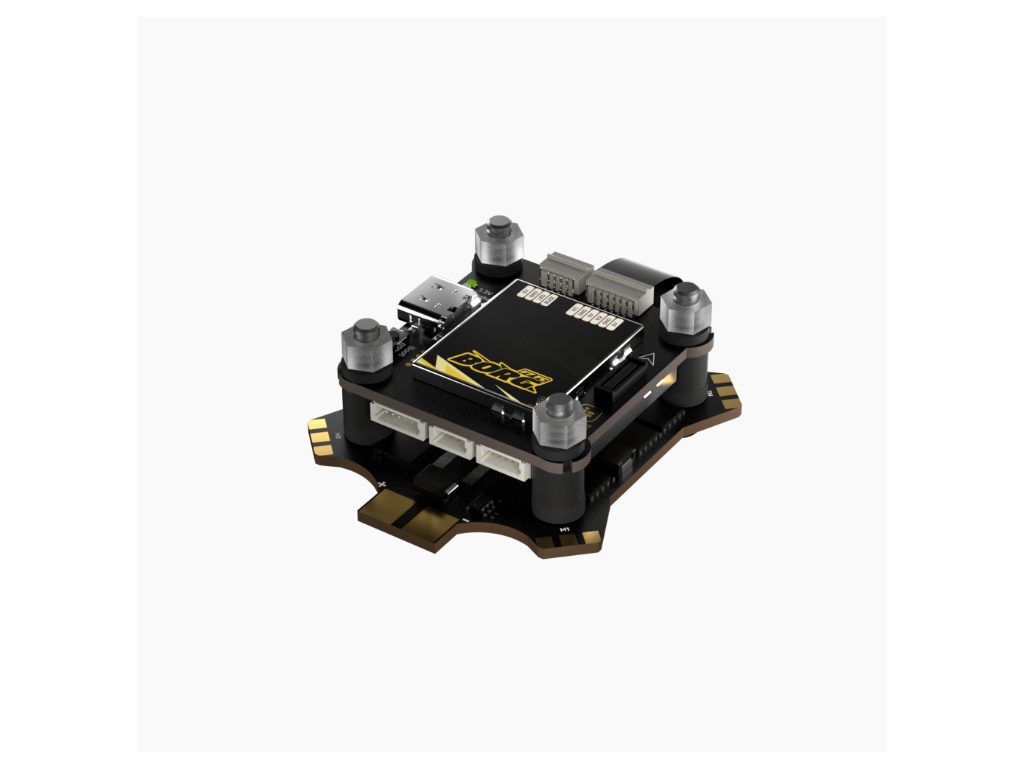

The iFlight Borg F7 Stack combines the Borg F7 Flight Controller with the Borg 60 4-in-1 ESC to provide a reliable and high-performance electronics solution for 5–10 inch FPV drones. Designed for freestyle, racing, and long-range applications, the stack features an advanced F7 processor, dual camera support, integrated anti-spark protection, and efficient power delivery for smooth, responsive flight performance.

Features:
- Complete flight controller and 4-in-1 ESC stack designed for 5–10 inch FPV drones
- High-performance F7 processor delivers fast response and precise flight control
- Supports 4–6S LiPo and LiHV batteries for compatibility with a wide range of drone configurations
- Dual camera input allows convenient switching between video sources via the radio transmitter
- Integrated anti-spark circuit, TVS transient voltage suppression, and built-in high polymer capacitors improve reliability and simplify installation
- FPC ribbon cable and SH1.0 locking connectors provide secure, stable connections between the flight controller and ESC
- Supports ESC telemetry, bidirectional DShot, DJI MSP, SmartAudio, IRC Tramp, and HDZero VTX protocols
- Built-in Blackbox memory, barometer, switchable 12V BEC, and Betaflight compatibility enable advanced tuning and dependable performance

Specifications:
Flight Controller
Input Voltage: 4–6S LiPo / LiHV
MCU: STM32F722RET6
Gyroscope: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E (LGA)
Blackbox Flash: 32MB
UART Ports: 6
Motor Outputs: 4
I2C Interface: Supported
Supported VTX Protocols: DJI MSP, SmartAudio, IRC Tramp, HDZero
LED Controller: Yes
Beeper Pad: Yes
BEC Output: 5V 2.5A
BEC Output: 12V 2A (switchable VTX output)
Betaflight Firmware Target: IFLIGHT_BLITZ_F722
Mounting Pattern: 30.5x30.5 mm (Ø4 mm)

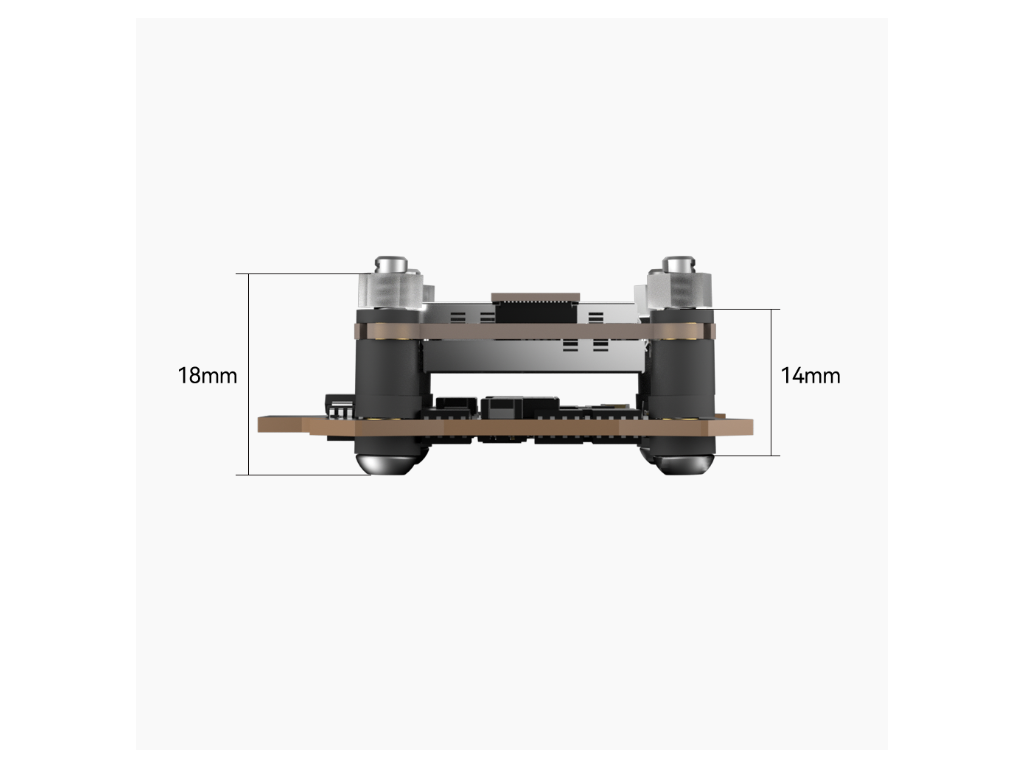

Dimensions: 37.5x37.5 mm (±1 mm)
Weight: 14 g (±1 g)

ESC
Product Name: Borg 60 4-in-1 ESC
Input Voltage: 4–6S LiPo / LiHV (DC 14–26.1V)
Continuous Current: 60A
Burst Current: 65A (10 seconds)
MCU: STM32G071N
Driver IC: FD6288
Firmware: BL32 (32-bit ESC)
Firmware Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes (1/200)
BEC: No
Telemetry: Supported
Bidirectional DShot: Supported
Supported Protocols: DShot150, DShot300, DShot600, MultiShot, OneShot, and others
Mounting Pattern: 30.5x30.5 mm (Ø4 mm)
Dimensions: 52x45.5 mm (±1 mm)
Weight: 15.5 g (±1 g)

Package includes:
1x iFlight Borg F7 Flight Controller
1x iFlight Borg 60 4-in-1 ESC
1x Cable Set
