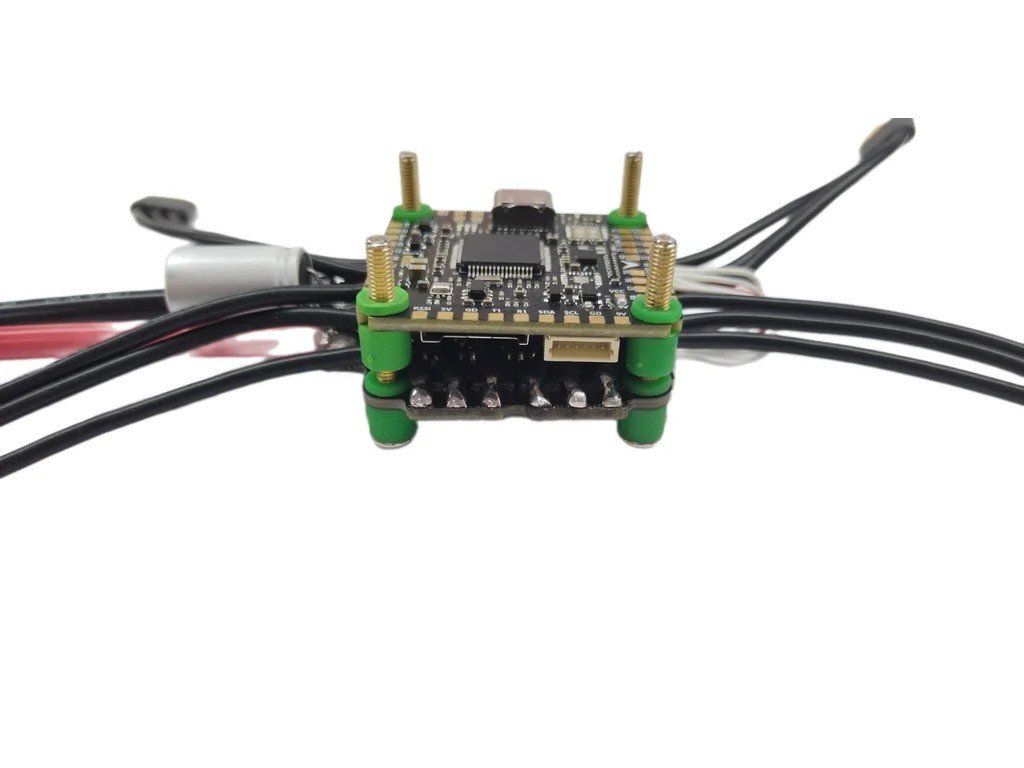

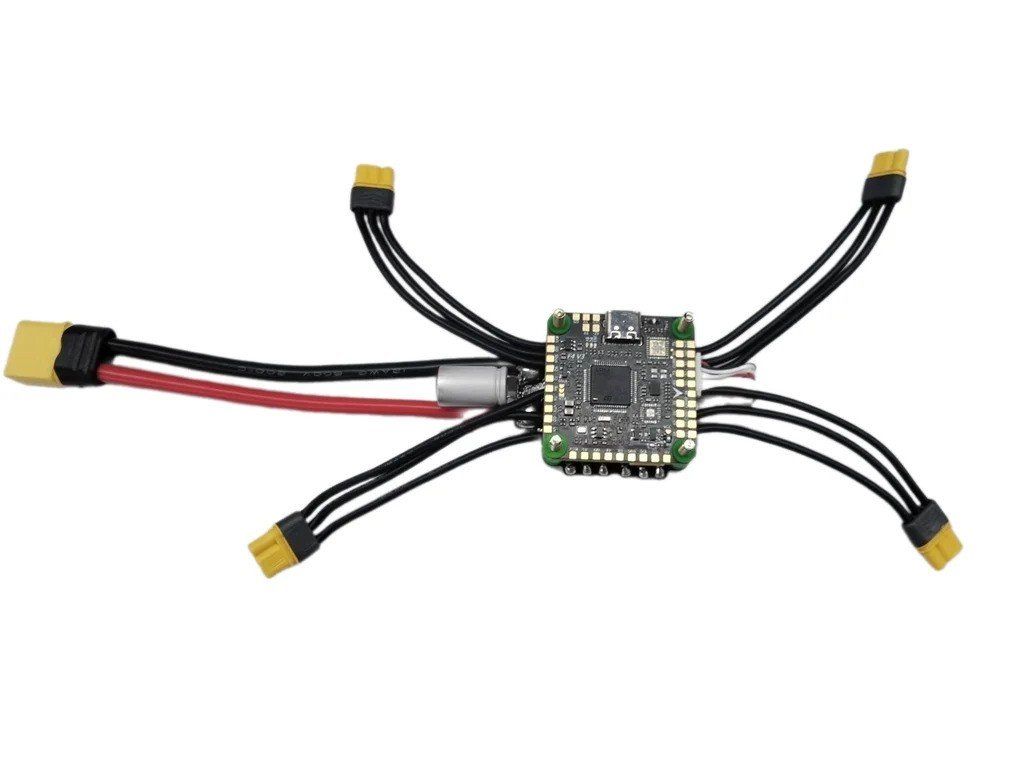

Stack Pilotix DIY Kit F405V3 FC + 60A ESC V2

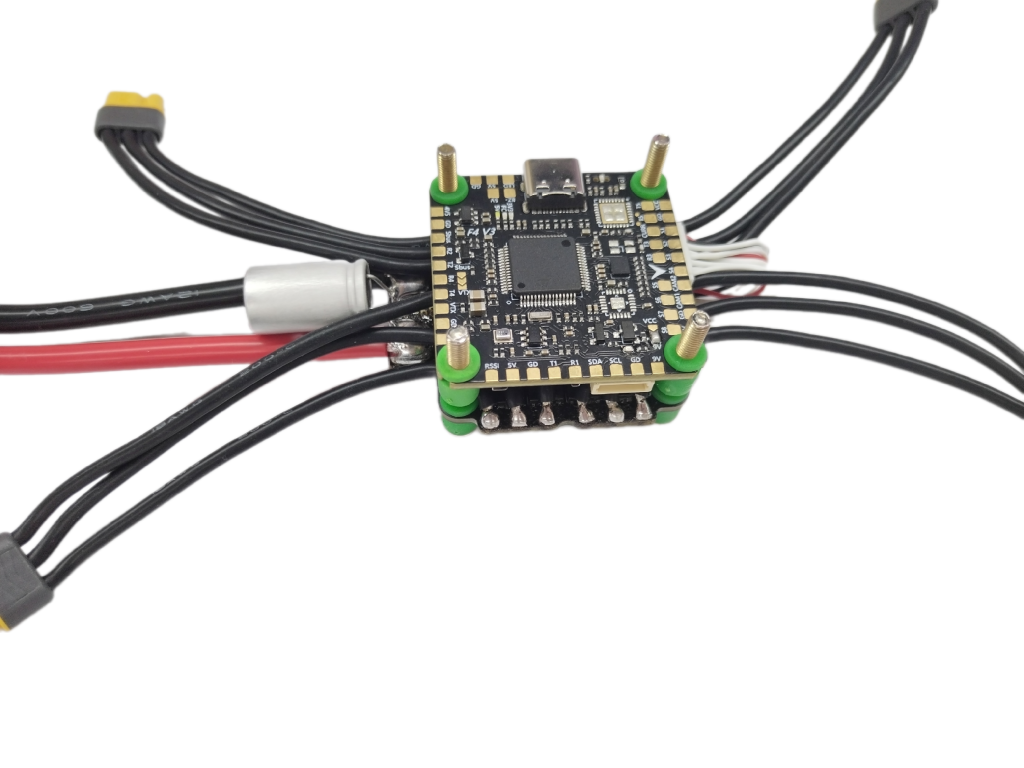

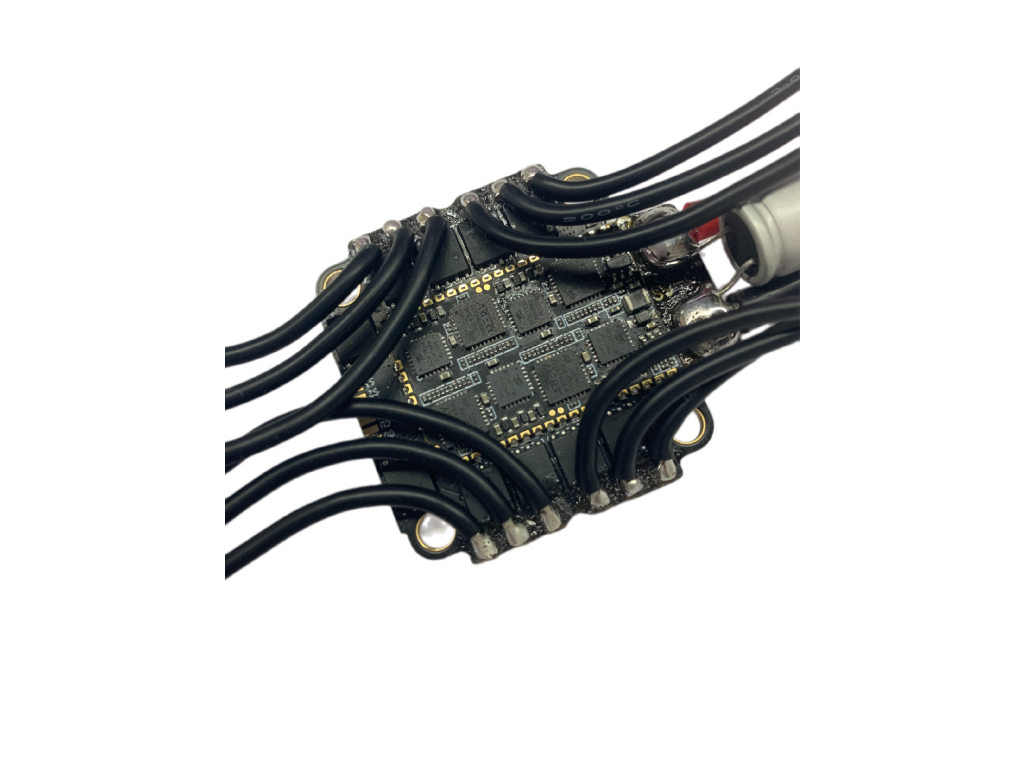

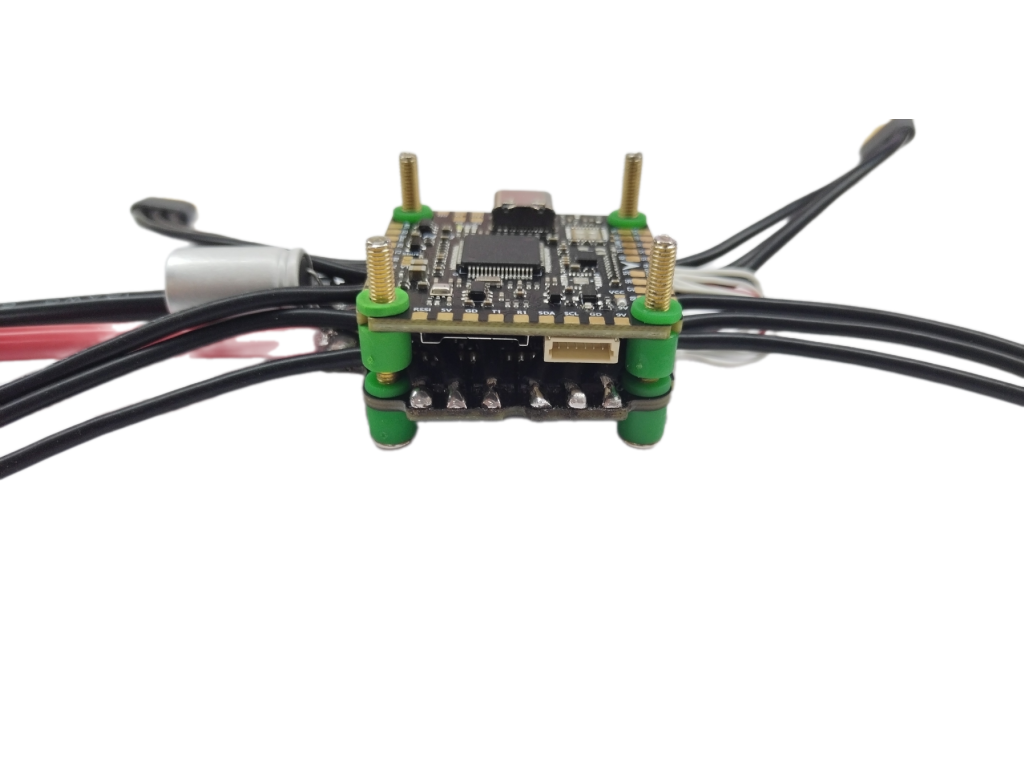

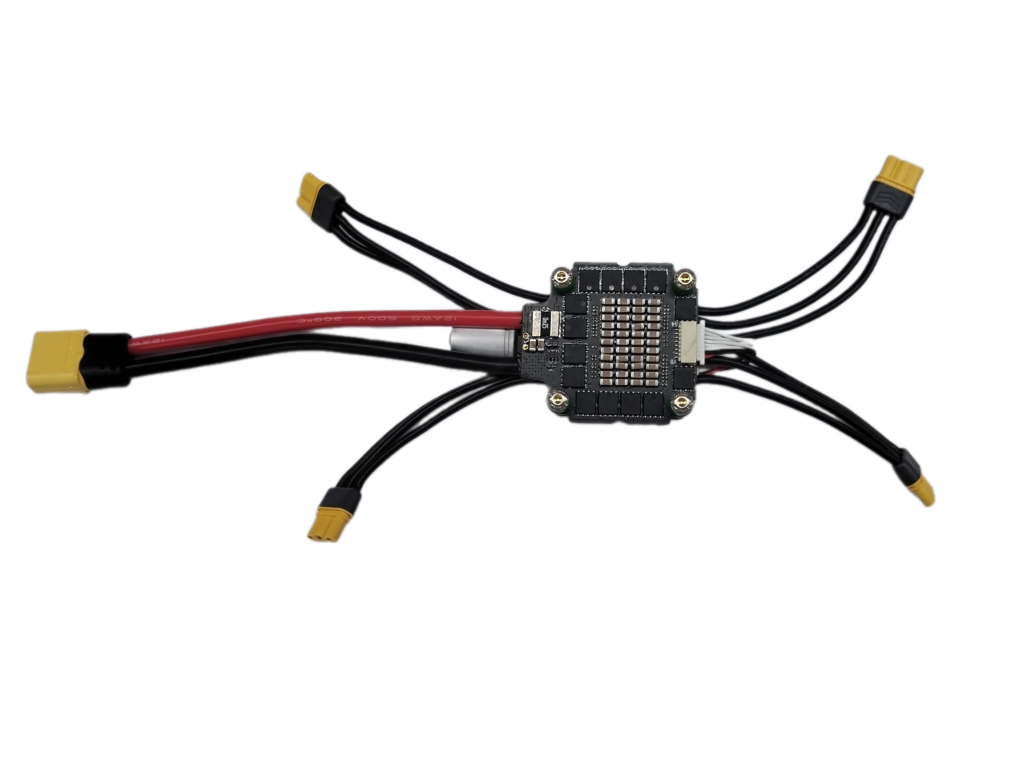

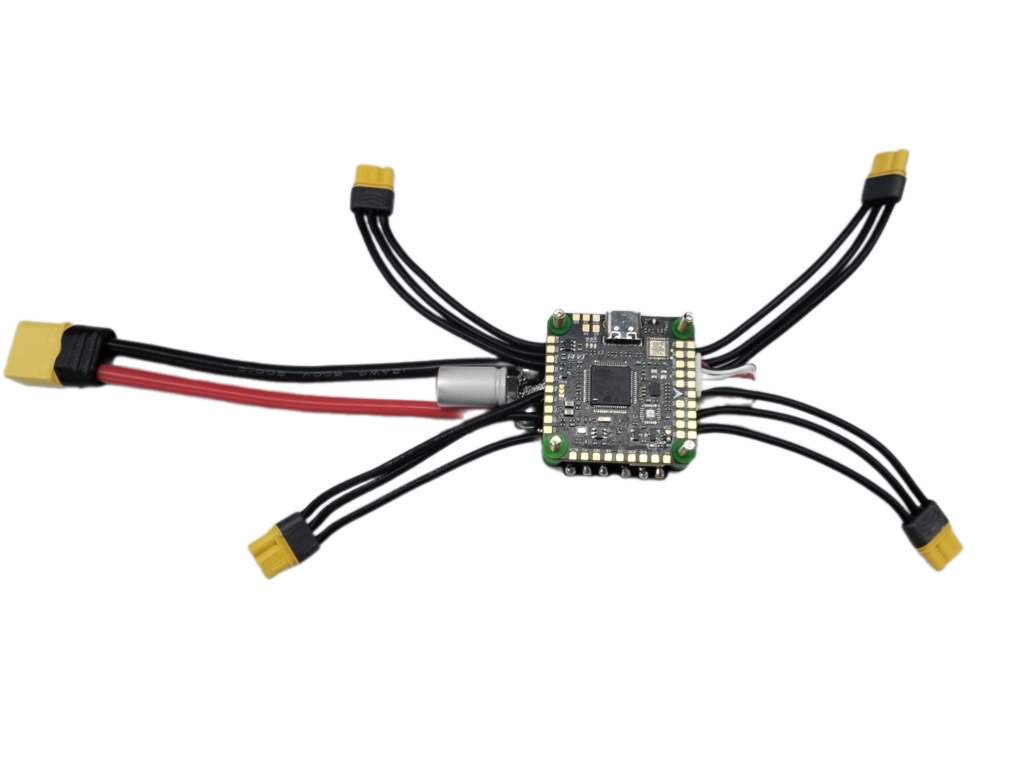

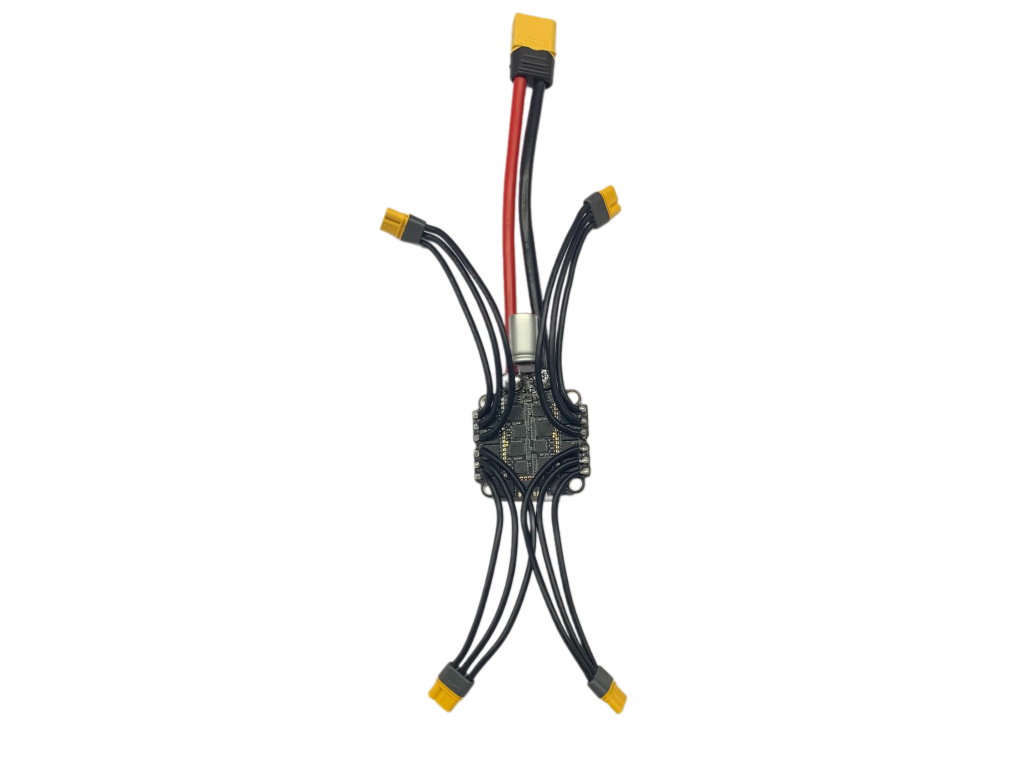

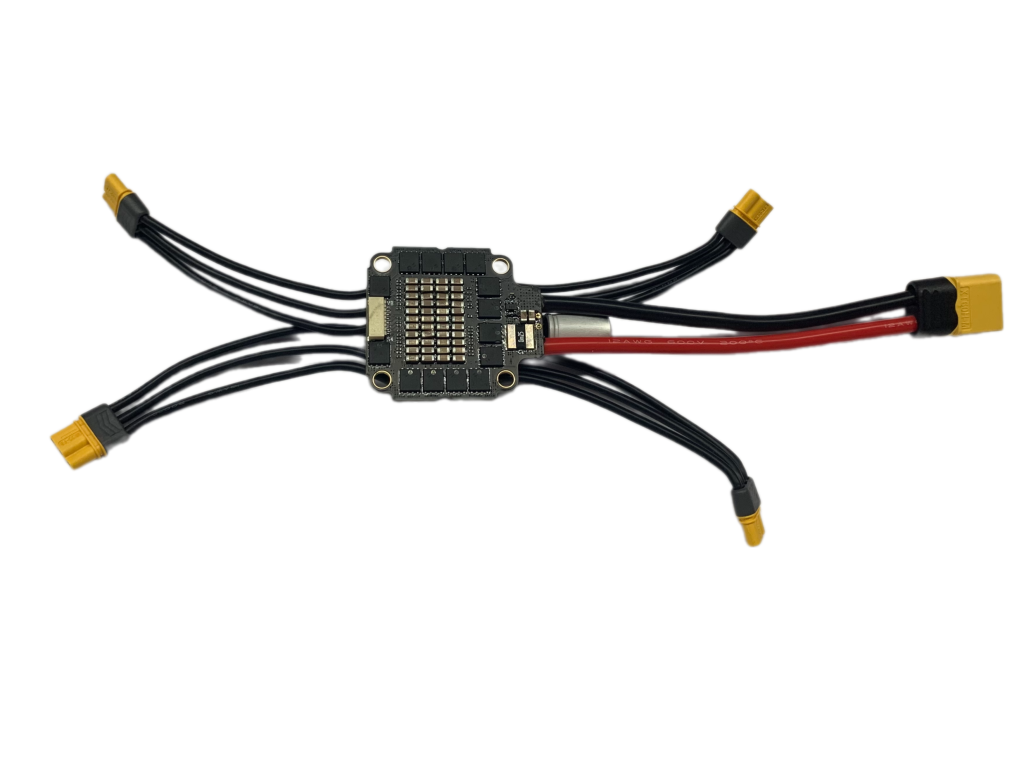

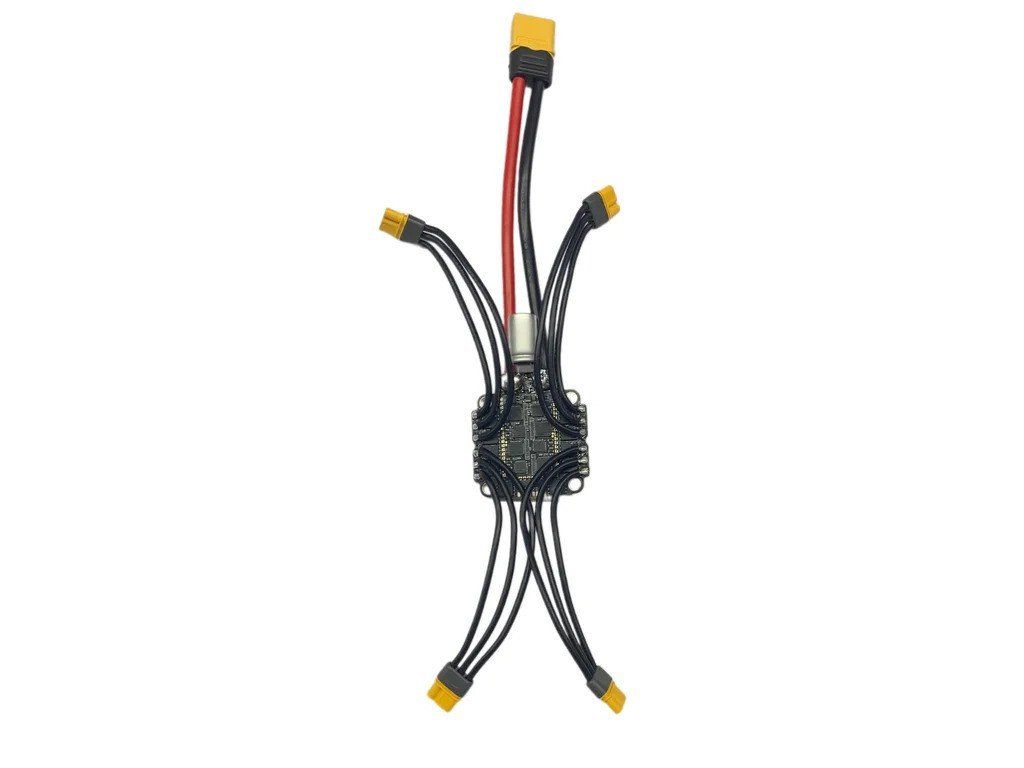

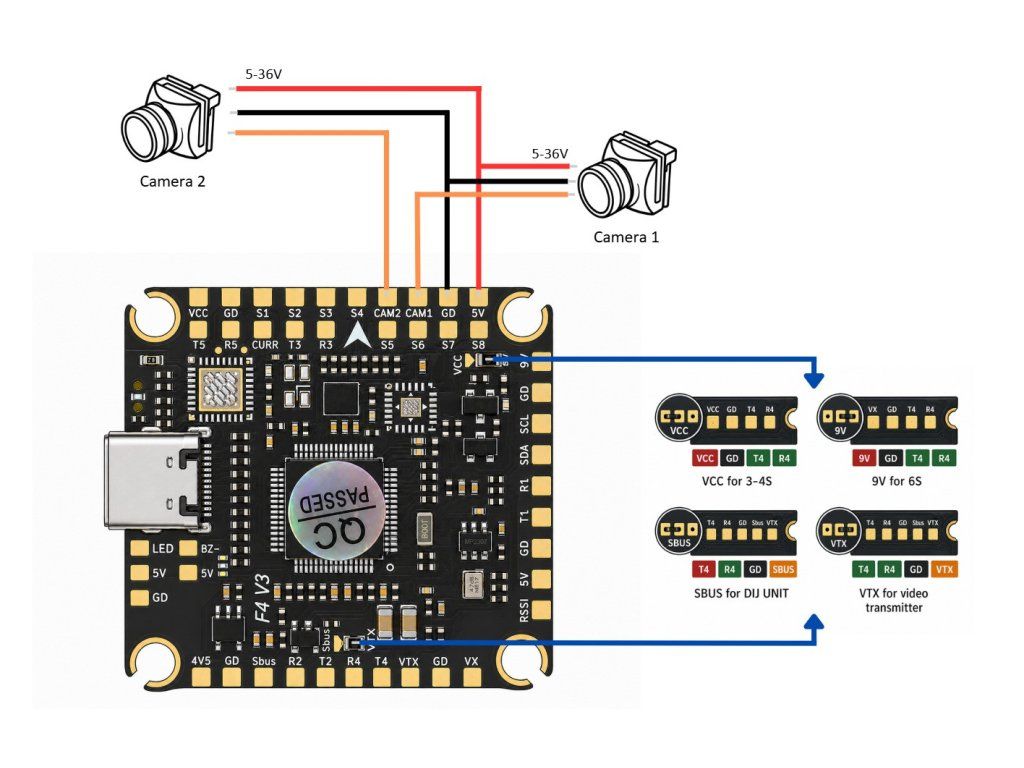

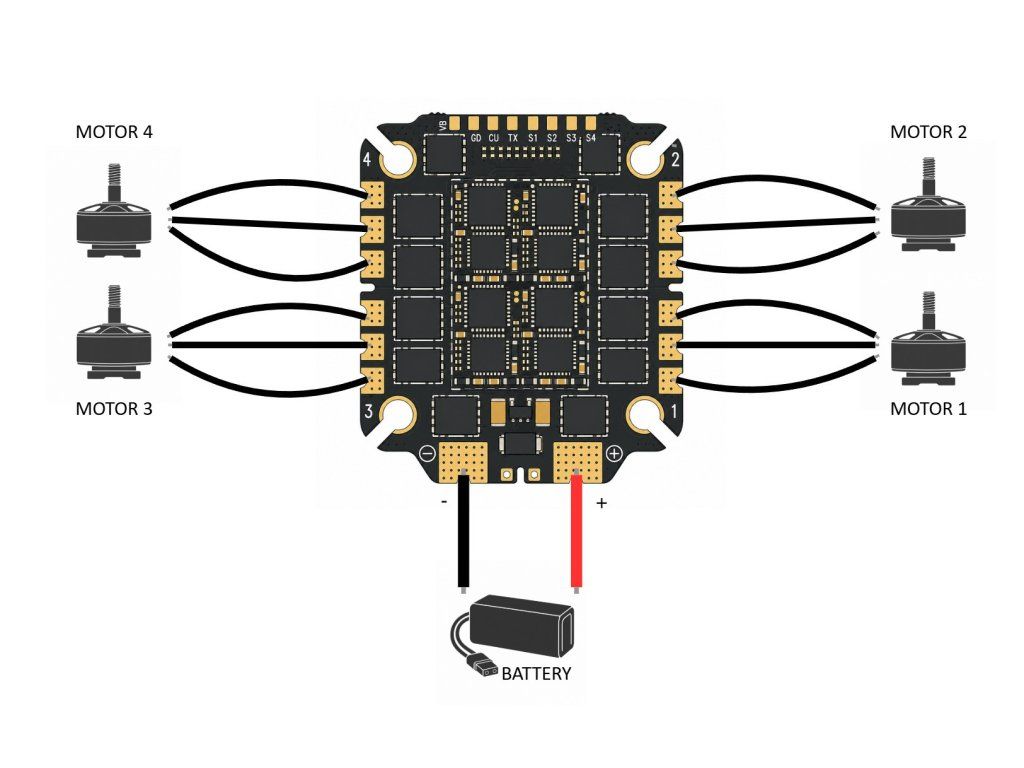

The Pilotix F405V3 FC + 60A ESC V2 is a combined flight controller and 4-in-1 electronic speed controller stack designed for FPV applications. This integrated system features an STM32F405 MCU running Betaflight firmware with the PILOTIXF405V3 target, paired with a 60A continuous current ESC powered by an AT32F421K8U7 processor running AM32 firmware. The flight controller incorporates an ICM42688-P gyro connected via SPI, a built-in accelerometer, SPL06 barometer, and built-in magnetometer. It provides 5 UART ports, 1 I2C port, and a USB Type-C connection with DFU button for firmware updates. The system supports multiple receiver protocols including SBUS, CRSF, ELRS, FrSky, Futaba, Flysky, TBS Crossfire, and DSMX, while motor control is handled through 4 outputs supporting bi-directional DShot, DShot150/300/600/1000, OneShot125/42, PWM, and Brushed protocols. Analog OSD is provided with 2 video inputs and analog video output. Dual BEC outputs deliver 5V at 2.5A and 9V at 2.5A, with LED strip and buzzer outputs available. The ESC accepts 3-6S input voltage via XT60 connector, delivers 60A continuous and 70A peak current per channel, and includes a 1000µF 35V capacitor. The FC measures 36x36mm weighing 9.6g, while the ESC measures 44.5x41mm at 14g, both using 30.5x30.5mm M3 mounting. Operating temperature ranges from -20 to 40°C with 20-95% RH humidity tolerance.
