TX Module HGLRC T ONE ELRS 868/915MHz

Product detailed description

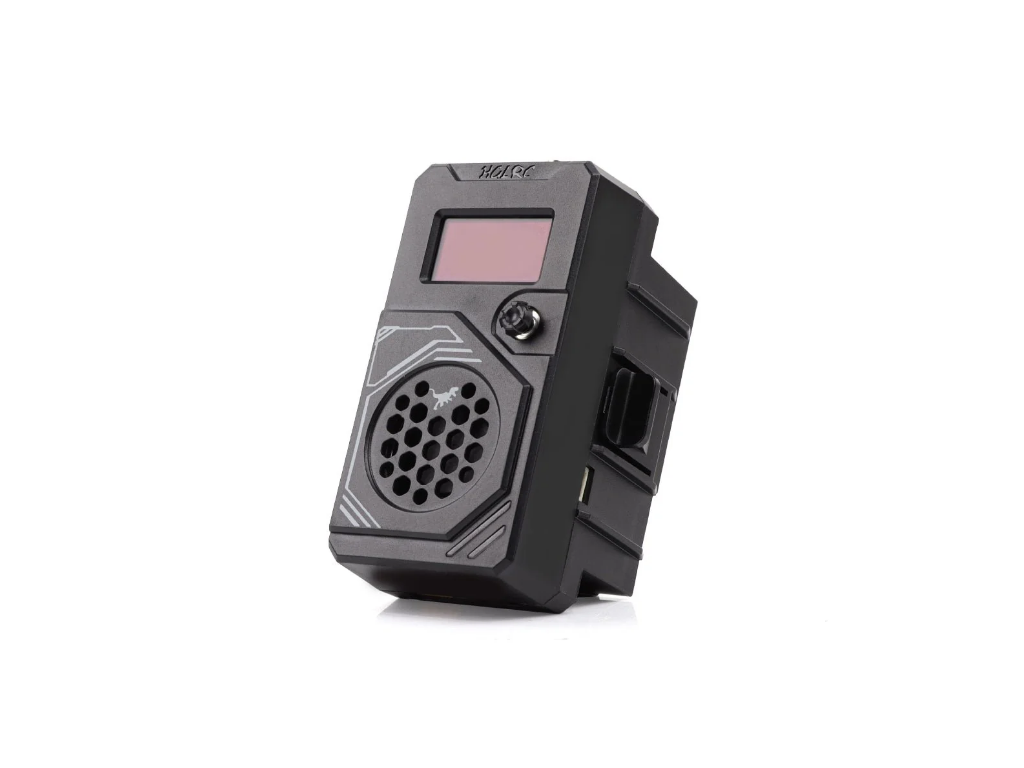

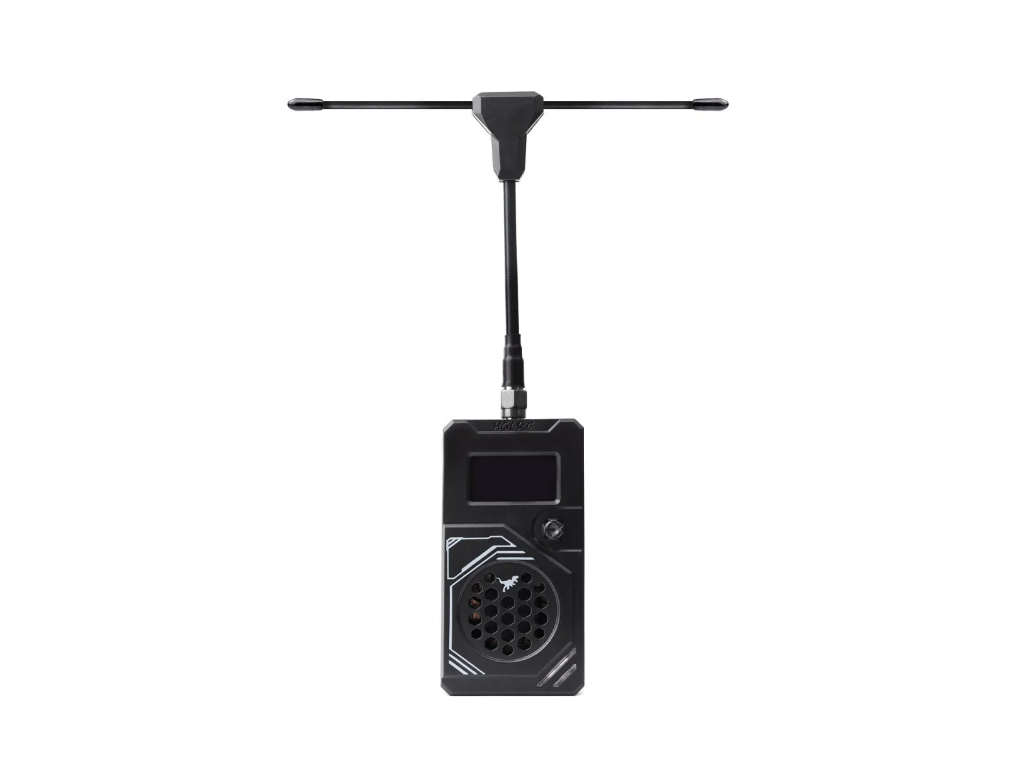

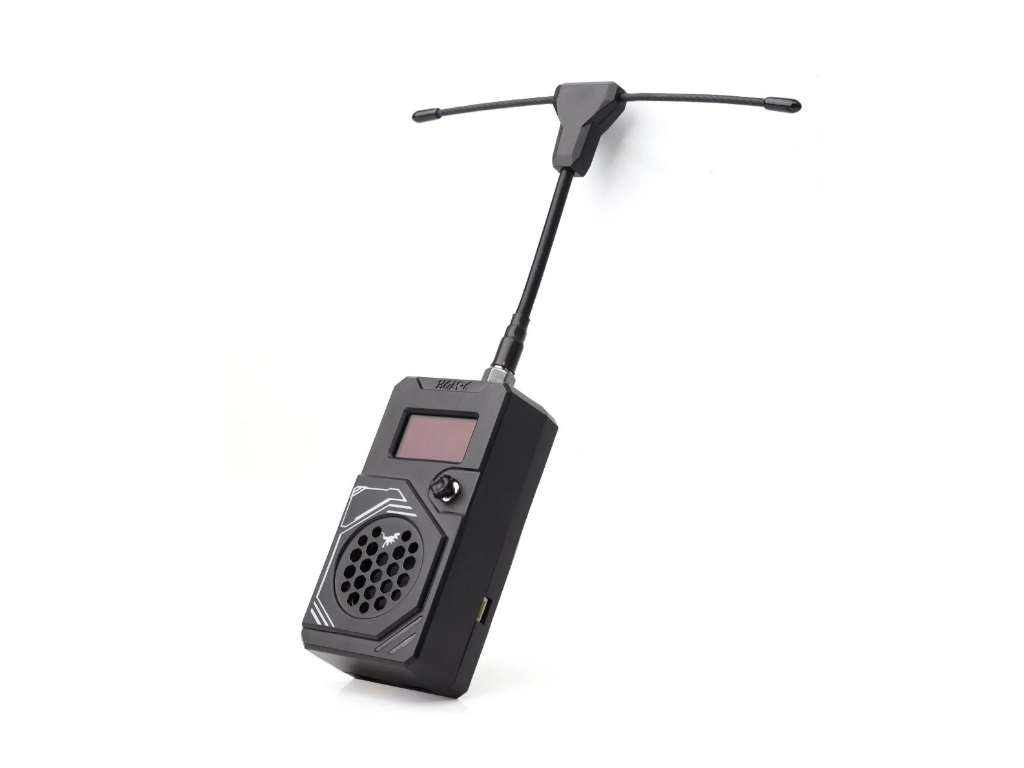

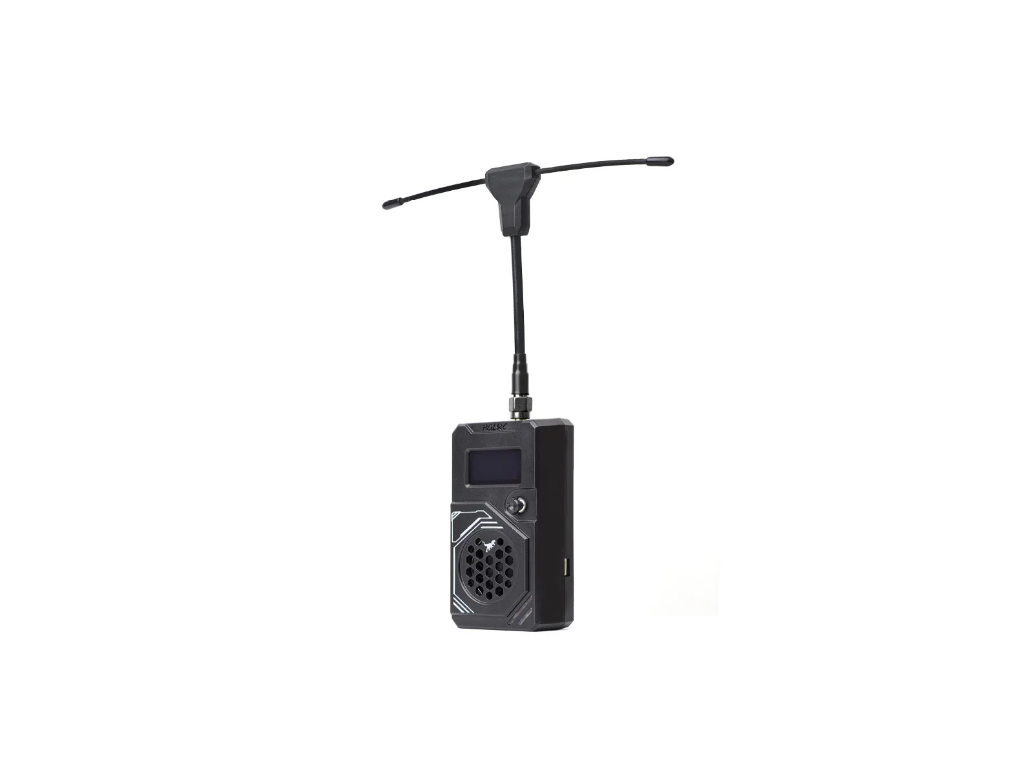

TX Module HGLRC T ONE ELRS 868/915MHz

The HGLRC T ONE ELRS 868/915MHz TX Module is a high-power ExpressLRS transmitter module designed for long-range FPV and RC applications. With up to 2W output power, an active cooling system, OLED display, and interchangeable JR/NANO mounting shells, it provides reliable long-distance control and compatibility with a wide range of radio transmitters.

Features:
- ExpressLRS 868/915MHz long-range control link
- High output power up to 2W for extended transmission range
- Multiple selectable power levels for different flight conditions
- CNC-machined metal heatsink and turbofan cooling system
- Interchangeable JR 5-pin and NANO 8-pin mounting shells
- Compatible with most radio transmitters using JR or NANO module bays
- High-contrast OLED display for convenient status monitoring
- XT30 external power input
- Supports external power from 2S to 6S batteries
- Suitable for long-range FPV and RC applications

Specifications:
Product: HGLRC T ONE TX Module
Protocol: ExpressLRS (ELRS)
Frequency: 868–915MHz FCC
Output Power: 100mW / 250mW / 500mW / 1000mW / 2000mW
Refresh Rate: 25Hz / 50Hz / 100Hz / 200Hz
External Power Input: DC 7.4–25.2V
Supported Battery: 2S–6S
Module Interface: JR standard 5-pin / NANO standard 8-pin
Display: OLED
Cooling: CNC metal heatsink + turbofan
NANO Version Weight: 76g without antenna
JR Version Weight: 85g without antenna
NANO Dimensions: 41x85x29mm without antenna
JR Dimensions: 41x85x45.5mm without antenna

Package Includes:
1x HGLRC T ONE 868/915MHz TX Module (NANO)
1x JR Compartment Replacement Bottom Shell
1x JR Compartment Replacement Bottom Shell Cable
1x 915MHz TX Module Antenna
1x Hexagonal Wrench
