Product detailed description

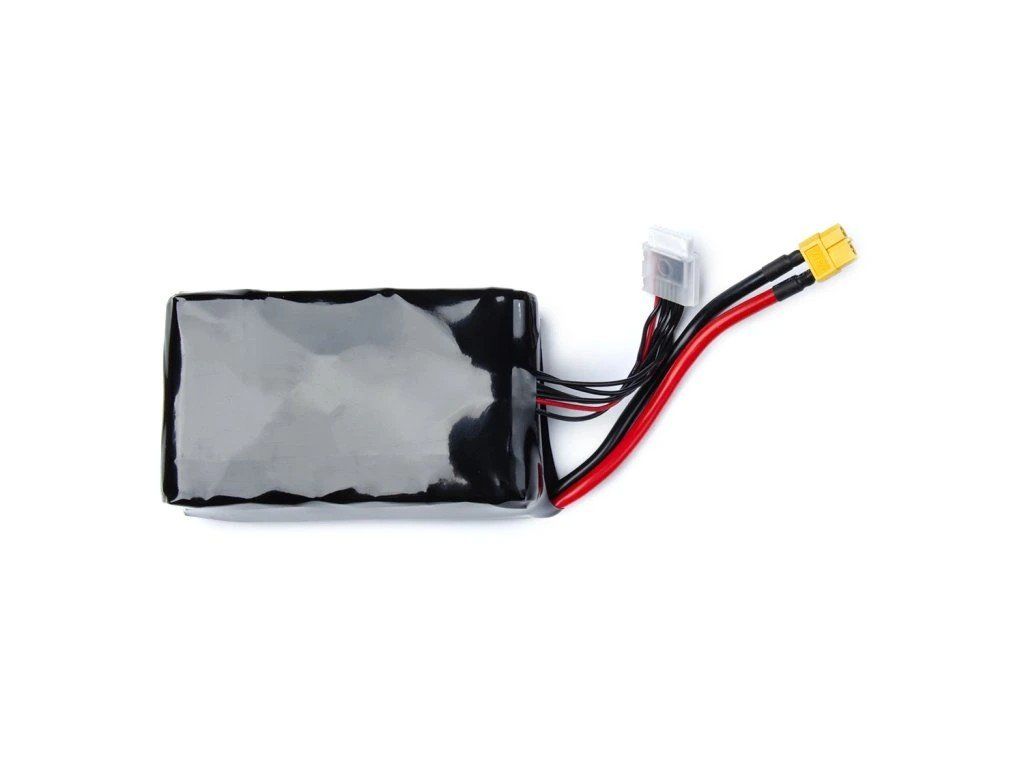

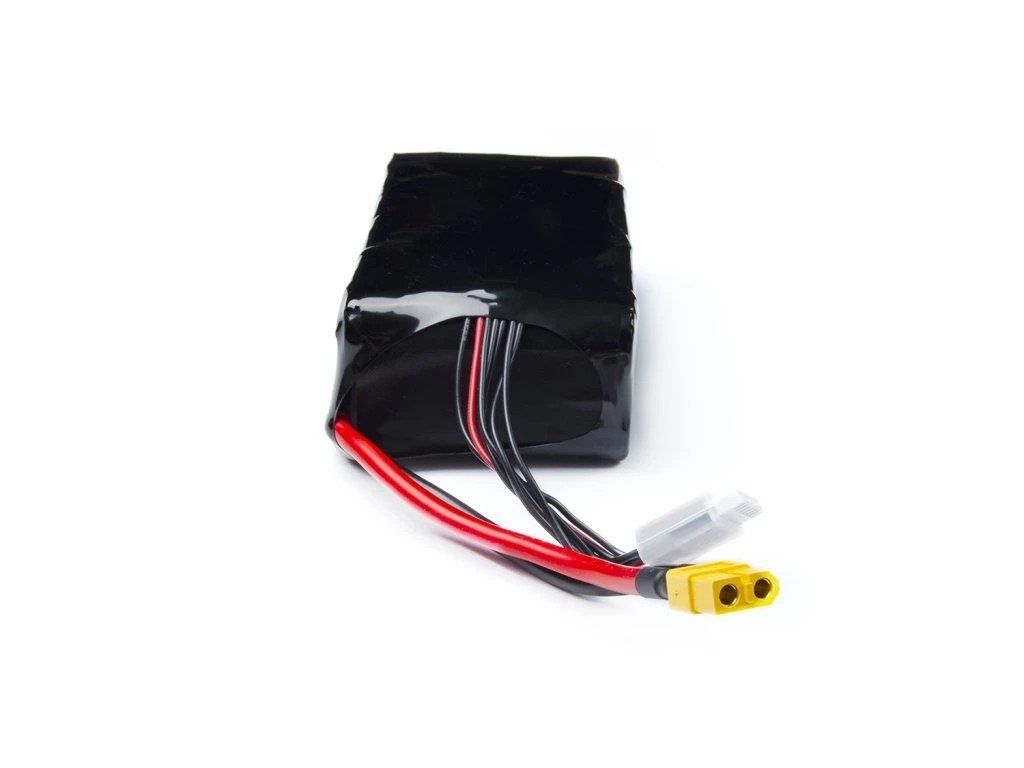

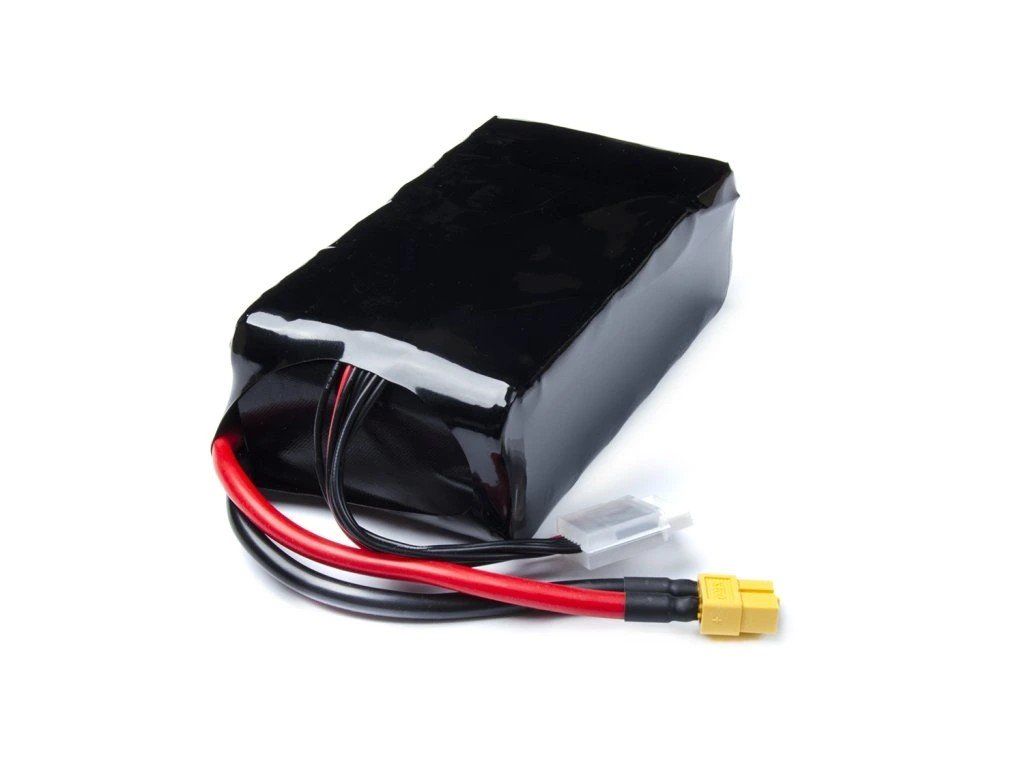

The HobbyDrone Li-ion 6S2P 8000mah 10C XT60 is a lithium-ion battery pack designed for FPV applications. This 6S configuration battery offers 8000 mAh capacity with a nominal voltage of 21.6V.
The battery features a continuous discharge rate of 10C with a maximum discharge rate of 20C. Voltage range spans from 15V minimum to 25.2V maximum, with a recommended storage voltage of 22.2V. The maximum charge rate is 1C. For connectivity, the pack includes an XT60 power connector and a JST XH 2.54mm 7-pin balance connector. The battery measures 130 x 73 x 45 mm and weighs 780 grams.
Operating temperature ranges from -20 to 40°C, while charging and storage temperatures are limited to 10 to 40°C. Humidity tolerance is 20-95% RH non-condensing. The product is backed by a 2-year warranty.
Product details
| Model |
Li-ion 6S2P 8000mah 10C XT60
|
| SKU |
5556
|
Electrical specification
| Type |
Li-ion
|
| Cell configuration |
6S2P
|
| Capacity |
8000 mAh
|
| Min voltage |
15 V
|
| Nominal voltage |
21.6 V
|
| Max voltage |
25.2 V
|
| Storage voltage |
22.2 V
|
| Max charge rate |
1 C
|
| Continues discharge rate |
10 C
|
| Peak discharge rate |
20 C
|
Interfaces
| Power сonnector |
XT60
|
| Balance сonnector |
JST XH 2.54mm 7-pin
|
Mechanical specifications
| Dimension |
130x73x45 mm
|
| Weight |
780 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Charging temperature |
10 - 40 °C
|
| Storage temperature |
10 - 40 °C
|
| Operating temperature |
-20 - 40 °C
|
| Operating temperature (important note) |
Operating at sub-zero temperatures reduces available capacity, increases internal resistance, and accelerates cell degradation, shortening overall battery lifespan.
|
