Motor Pilotix 5330 320KV

Product detailed description

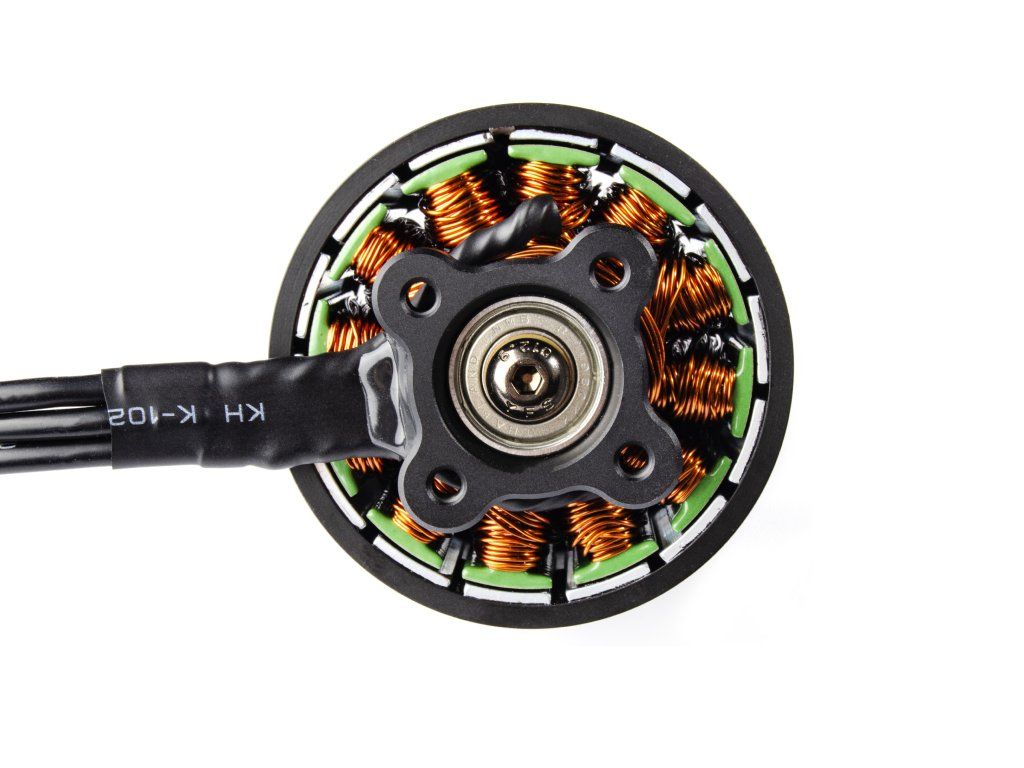

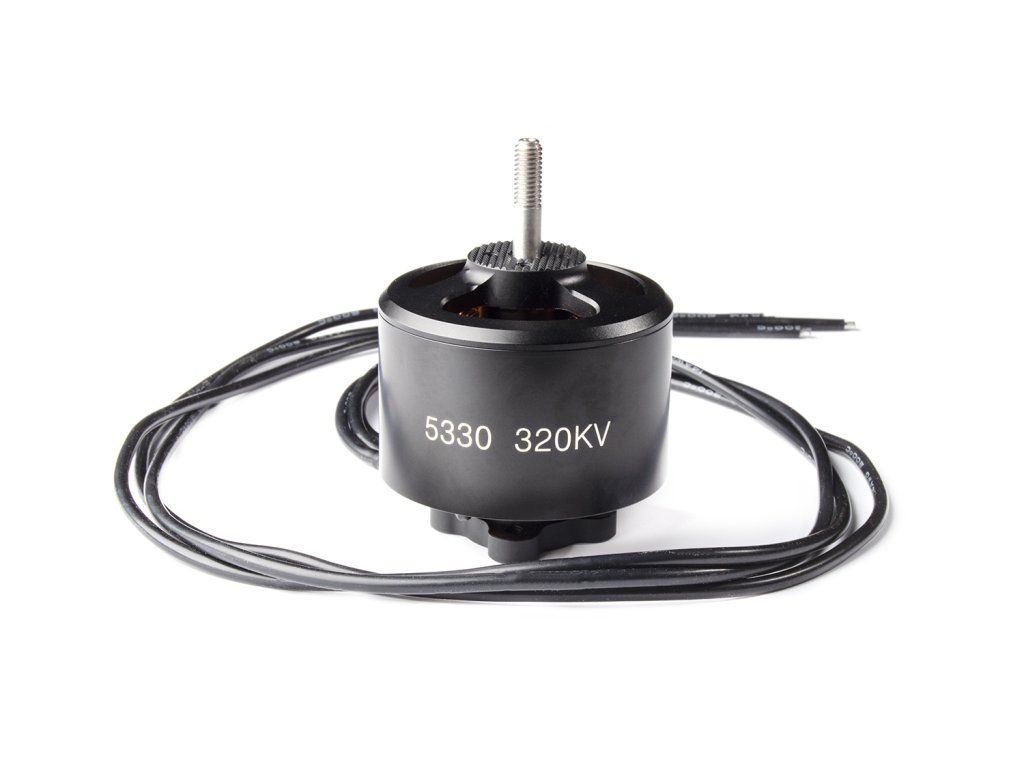

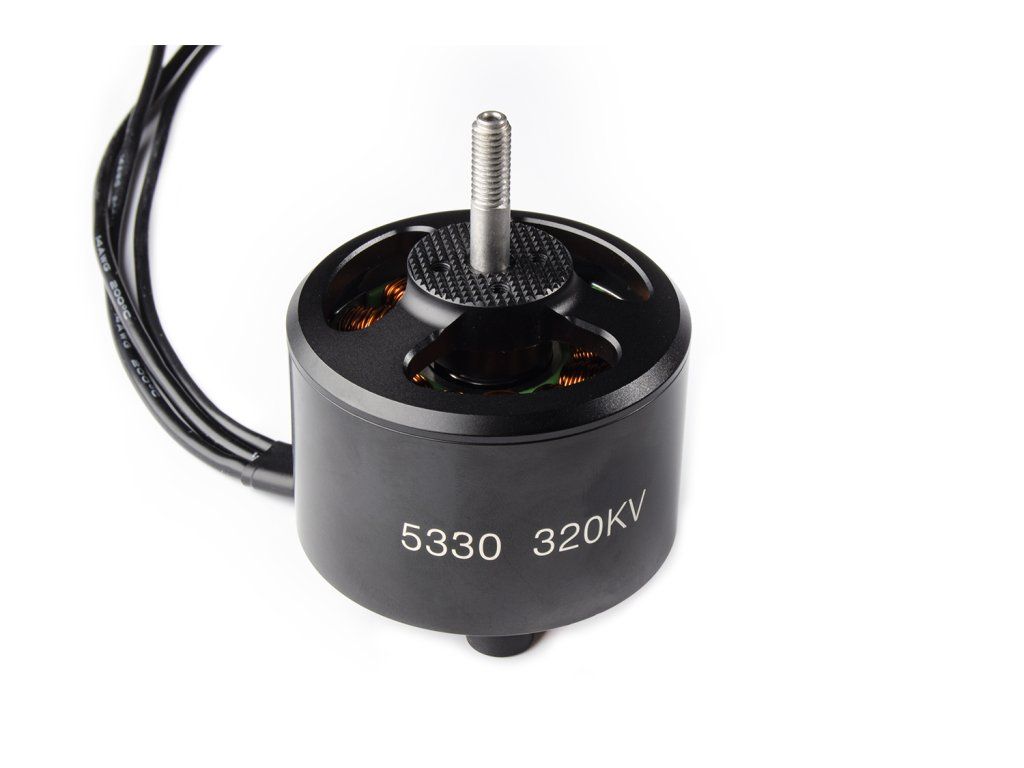

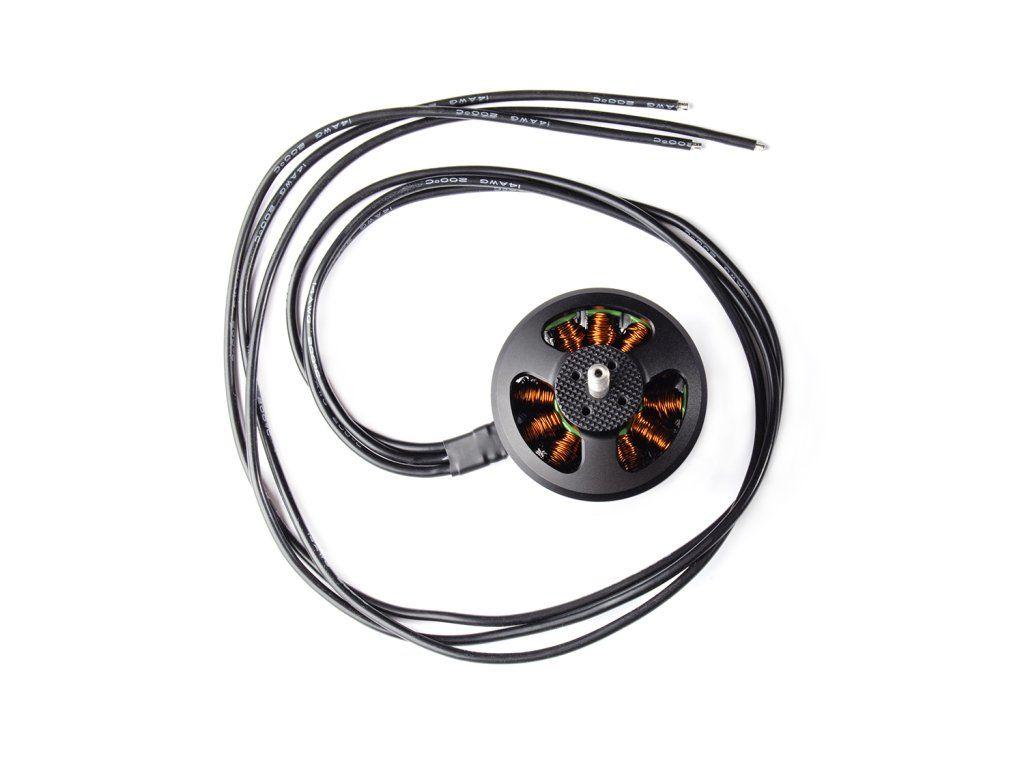

Motor Pilotix 5330 320KV

Motor Pilotix 5330 320KV is a powerful and efficient brushless motor designed for large drones and heavy-duty applications where reliable performance and stability are essential. With robust construction and optimized specifications, this motor ensures exceptional operation even under demanding conditions. Ideal for use in professional drones, industrial applications, and custom large-scale models.

Specifications:

KV: 320kv
Internal resistance: 25mΩ
Battery: 12S
Shaft Diameter: 6mm
Max force: 11025g
Max power: 4090.79w
Slot poles: 12N14P
Size: φ62.4*86.8mm
Silicone line: 14AWG750mm
Weight (wire included): 653g
Max current: 96.39A
Current without payload: 1.8A

Download documentation

Package Includes:
1x Motor Pilotix 5330 320KV
